Overview

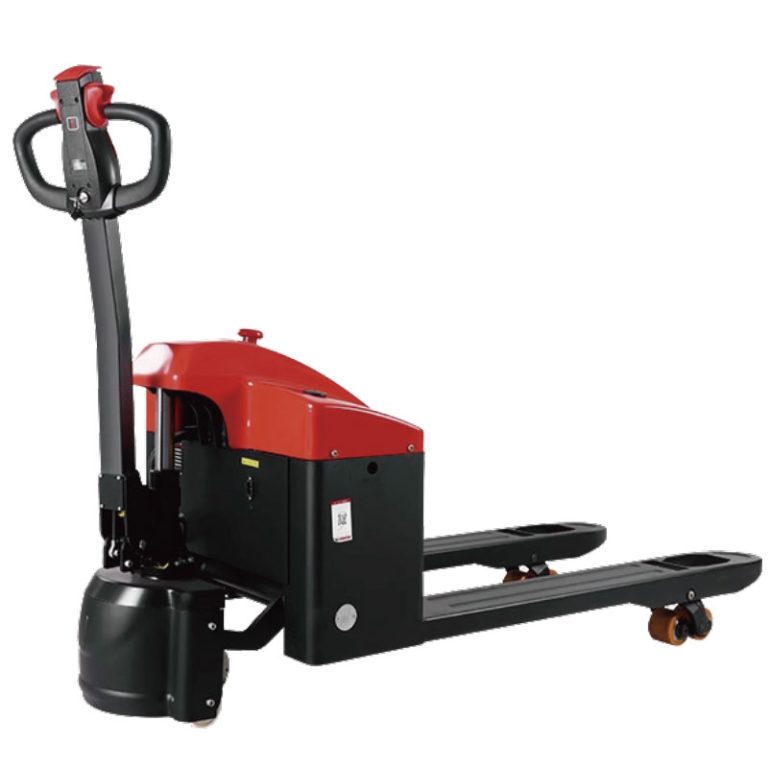

The CBD-15-30H Electric Pallet Truck, also referred to as an Electric Pallet Jack or Powered Pallet Mover, is designed for high-efficiency warehouse and logistics operations. It operates on 24V and has a standard capacity of 85 AH with options for lead acid or lithium battery types.
The unit supports flexible battery and charger options:
- Battery Type: Lead acid/Lithium battery.
- Battery Capacity: From 50AH to 600AH and others are optional.
- Charging Voltage: Wide range of charging voltages supported, from 100V to 580 V.
- Power Supply: Single-phase, two-phase, or three-phase.
The CBD-15-30H Powered Pallet Truck is the ideal choice for upgrading your logistics efficiency and handling high-intensity tasks, thanks to its smart control, easy maintenance, and superior performance.
Features
One-touch switching of three modes: economic, power, and strong.
Adapts to operations in different occasions and working conditions.
Has good visibility, intuitive reading, and friendly human-computer interaction.
The high-frequency MOSFET integrated controller ensures smooth and accurate walking and lifting control.
Excellent speed regulation performance, good motor and electronic control matching performance.
Includes functions such as regenerative braking, reverse braking, and ramp anti-slip.
Reliable and safe operation.
New concept design allows the battery to be quickly replaced without lifting it from the gap on the top of the roof guard frame.
Suitable for severe working conditions such as heavy load and continuous work.
Provides good sealing, waterproof, dustproof, and corrosion resistance.
Can be used in various occasions.
Makes it easier for operators to see the road ahead when working at night.
Overall performance is improved.
Specification
| Model | Unit | CBD-15-30H | / |
| Power unit | Electric | / | |
| Rated capacity | kg | 1500–3000 | optional |
| Load center | mm | 600 | / |
| Vehicle weight including battery | kg | 222 | / |
| Tire | |||
| Wheel type | Polyurethane | / | |
| Drive wheel | mm | 210×70 | / |
| Front wheel | mm | 84×70 | / |
| Basic size | |||
| Vehicle length | mm | 1776 | optional |
| Vehicle width | mm | 698 | optional |
| Fork width | mm | 1150 | optional |
| Fork outer width | mm | 550/685 | optional |
| Fork inner width | mm | 230/365 | optional |
| Fork thickness | mm | 75 | / |
| Forks lowered to minimum height | mm | 85 | / |
| Performance | |||
| Lifting height | mm | 215 | / |
| Traveling speed (full/unladen) | km/h | 3.5/4 | / |
| Lifting speed (full/unladen) | mm/s | 30/40 | / |
| Max gradeability (full/unladen) | % | 5/7 | / |
| Minimum turning radius | mm | 1593 | optional |
| Drive | |||
| Drive motor type | DC series motor | optional | |
| Drive motor Rated power | kw | 0.63 | optional |
| Lifting motor type | DC series motor | optional | |
| Lifting motor Rated power | kw | 0.8 | optional |
| Voltage | V | 24 | optional |
| Capacity | AH | 85 | optional |
