Overview

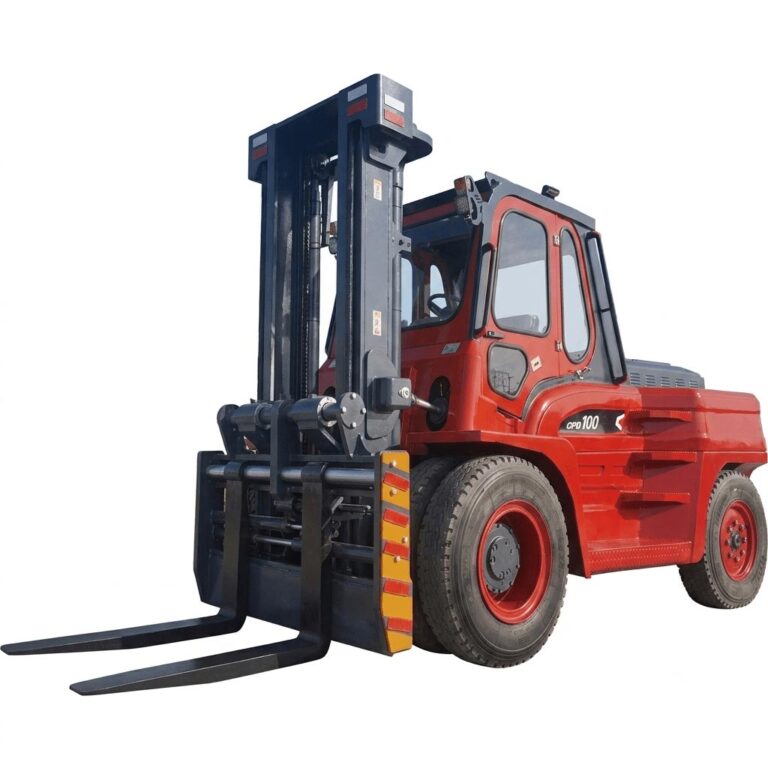

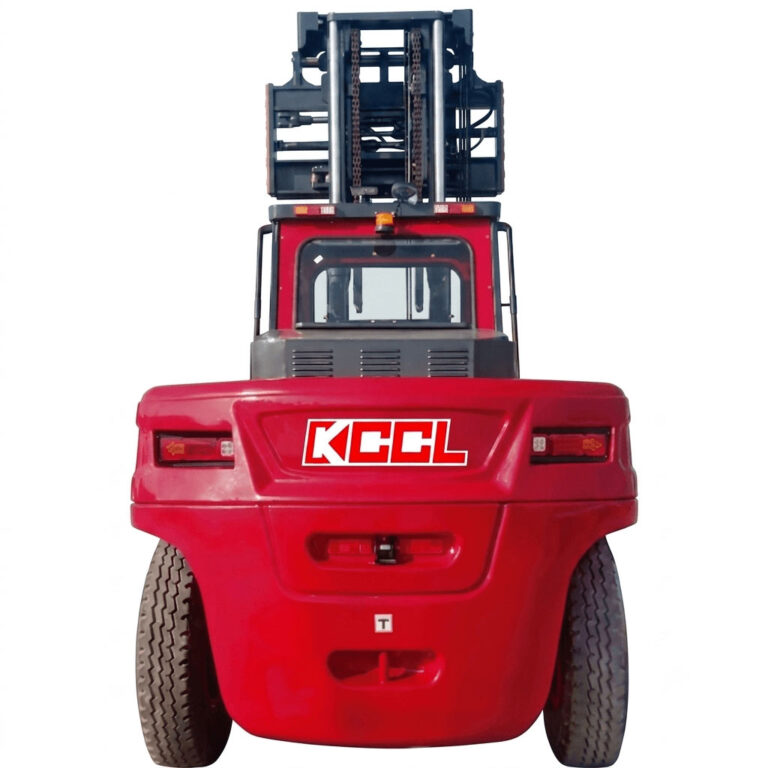

The KCCL Lift 8–10 tonne heavy duty electric forklift brings full engine-class lifting capacity to plants that can no longer run diesel indoors. Rated at 8000–10000 kg on a 600 mm load centre and driven by an 80 V system with a 30–35 kW traction motor, it handles steel, moulds, precast units and paper reels with zero exhaust and far lower noise. A fork positioner and side shifter are fitted as standard, hydraulic power steering keeps a 13-tonne machine precise to place, and an enclosed cab with heating or air conditioning keeps the operator productive across cold stores and hot yards.
Features
Fork positioner and side shifter fitted as standard
A hydraulic attachment moves the tines together or apart and shifts the load sideways from the seat, so the driver never climbs down to reset fork spacing between different pallet and load sizes. That cuts handling time on every mixed-load cycle and removes a common manual-handling injury risk.
Evidence: fork positioner and side shifter standard; fork width adjustable 420–2060 mm; fork size 85×175×1370 mm.
8–10 tonne capacity on an 80 V electric driveline
You get engine-class lifting capacity with no exhaust and markedly lower noise. Heavy unit loads can therefore be handled inside plants and enclosed halls where a diesel truck would be excluded on emissions or ventilation grounds — without stepping down to a smaller machine.
Evidence: rated 8000–10000 kg at a 600 mm load centre; 80 V system; drive motor 30–35 kW; lifting motor 21×2–25.4×2 kW.
High-capacity battery with 380 V charging and side-out exchange
A large pack supports long, heavy shifts, and the optional side-out battery solution lets a depleted pack be exchanged from the side instead of being lifted out through the roof guard. Multi-shift operations keep the truck working rather than waiting on a charge.
Evidence: battery capacity up to 1100 Ah (KN-CPD80) and 1240 Ah (KN-CPD100); charger input voltage 380 V; side-out battery solution available.
Hydraulic power steering with enclosed cab
Hydraulic steering keeps a 10-tonne-class truck light and precise to maneuver despite its mass, while the enclosed cab with heater or air conditioning protects the operator. Placement accuracy stays high and fatigue stays low through a full shift in any climate.
Evidence: hydraulic steering form; roof guard / cabin height 2450–2520 mm; cab with heater or air conditioning available as an attachment.
Intelligent BMS with 4G telemetry
The integrated battery management system continuously tracks voltage, current, temperature and insulation and reports online. Degradation and faults are caught before they strand a truck mid-shift, which protects both uptime and the largest single component cost in the machine.
Evidence: SOC/SOP/SOH/SOF estimation, insulation and adhesion detection, automatic cell balancing, 2-channel CAN and 4G wireless communication, online fault alarm.
Safety engineered to European regulation
Lowering is cut off the moment the driver leaves the seat, an emergency power-off switch is wired to the electronic control over CAN bus, and electronic hydraulic overload protection guards the mast. On the heaviest duties this protects people, load and machine at the same time.
Evidence: emergency power-off switch standard and CAN-bus connected, in compliance with European safety regulations; electronic hydraulic overload protection; safety valve in the lift cylinder.
Application

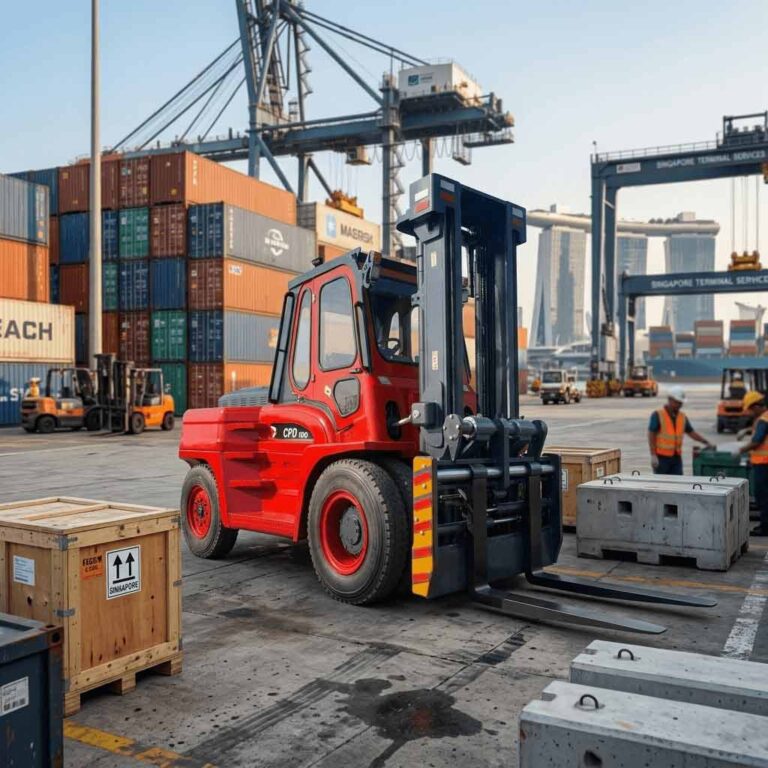

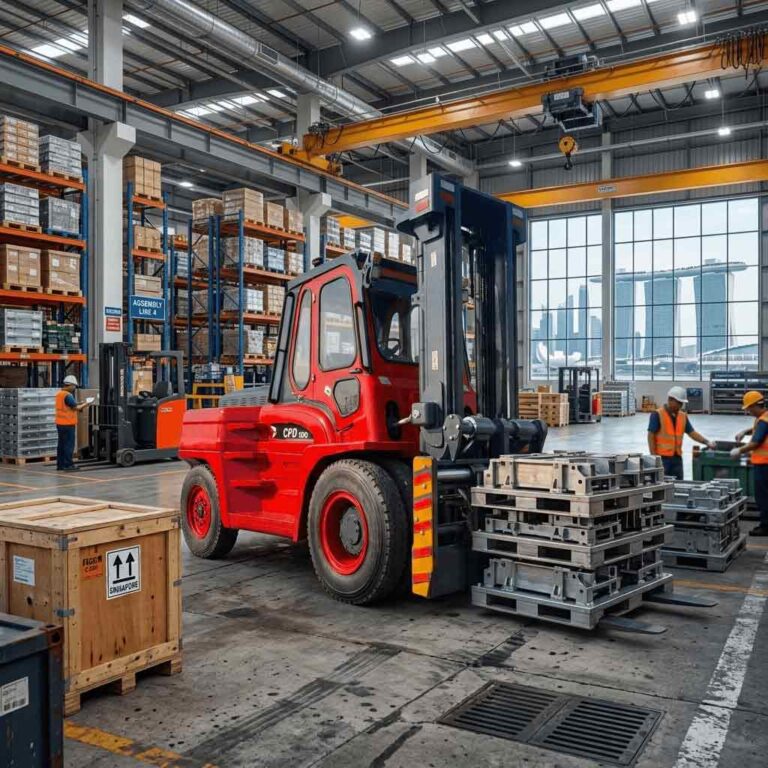

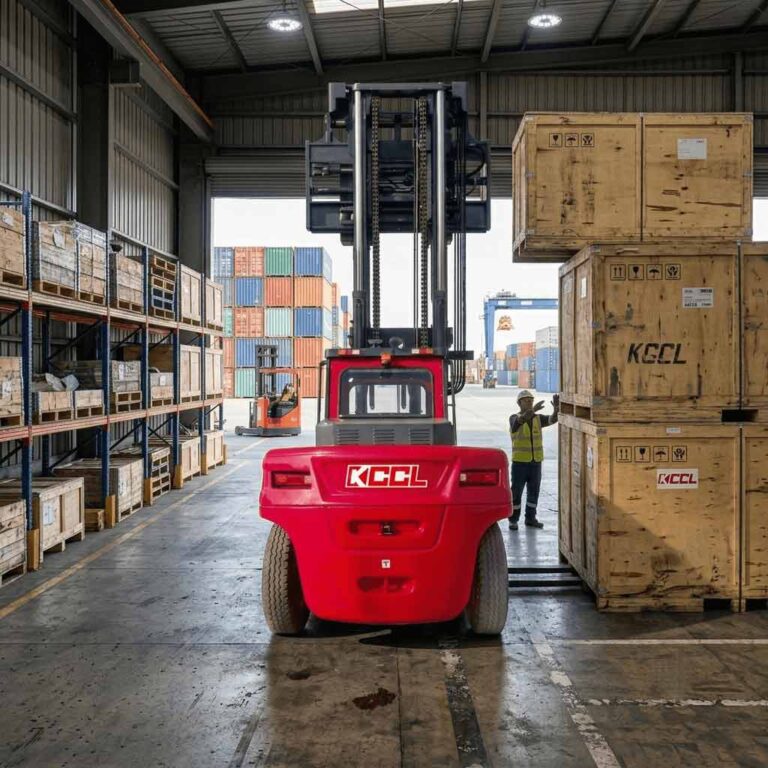

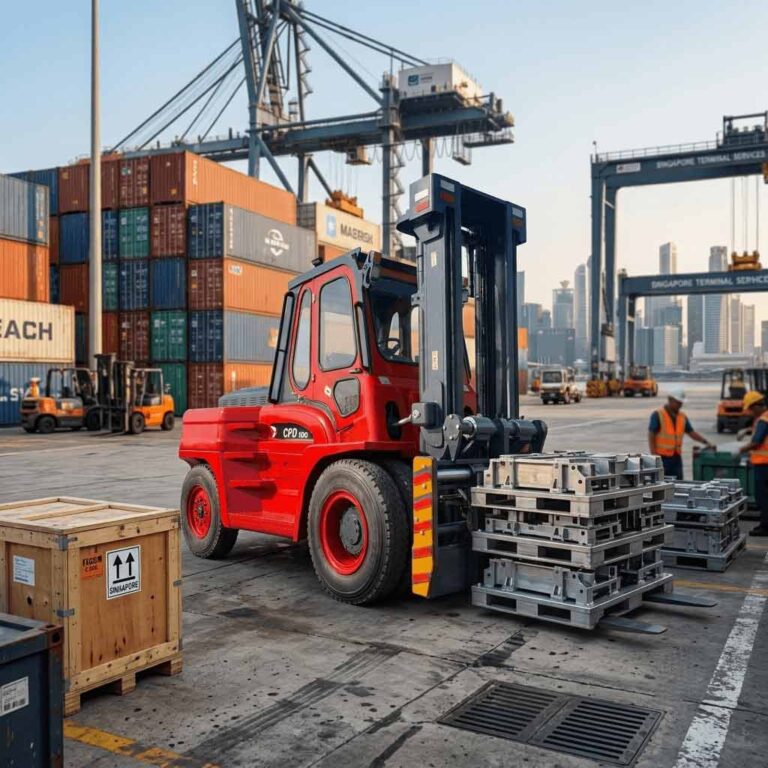

Built for heavy manufacturing and materials handling: steel and metals (coils, plate, billets), large moulds and dies, precast concrete and building materials, paper reels, port and yard work, and any plant moving 8–10 tonne unit loads indoors where emissions, noise or ventilation rule out a diesel truck. Pair with a rotating roll clamp, bale clamp or drum clamp for load-specific handling.
Specification
| Model | KN-CPD80 | KN-CPD100 |
|---|---|---|
| Power | Electric | Electric |
| Operation Type | Seated | Seated |
| Rated Capacity | 8000 kg | 10000 kg |
| Load Center | 600 mm | 600 mm |
| Front Overhang | 630 mm | 630 mm |
| Wheelbase | 2580 mm | 2780 mm |
| Steering Form | Hydraulics | Hydraulics |
| Vehicle Weight (incl. battery, unladen) | 10800 kg | 13200 kg |
| Tyre (front) | 825-15 | 900-20 |
| Tyre (rear) | 250-15 | 900-16 |
| Mast / Fork Tilt (α/β) | 6/9° | 6/9° |
| Lowered Height | 2850 mm | 2860 mm |
| Max. Lifting Height | 3000 mm | 3000 mm |
| Mast Extended Height | 4360 mm | 4500 mm |
| Roof Guard (Cabin) Height | 2450 mm | 2520 mm |
| Vehicle Length | 3760 mm | 3960 mm |
| Overall Width | 2000/1830 mm | 2200/1780 mm |
| Fork Size (s/e/l) | 85×175×1370 mm | 85×175×1370 mm |
| Fork Width (min/max) | 420/2060 mm | 420/2060 mm |
| Min. Body Ground Clearance | 150 mm | 160 mm |
| Turning Radius | 3350 mm | 3550 mm |
| Traveling Speed (full/unladen) | 13/15 km/h | 13/15 km/h |
| Lifting Speed (full/unladen) | 0.5/0.37 m/s | 0.25/0.35 m/s |
| Max. Gradeability (full/unladen) | 15% | 15% |
| Traveling Brake | Hydraulic + Mechanical | Hydraulic + Mechanical |
| Drive Motor Rated Power | 30 kW | 35 kW |
| Lifting Motor Rated Power | 21×2 kW | 25.4×2 kW |
| Charger Input Voltage | 380 V | 380 V |
| Battery Capacity | 1100 Ah (max) | 1240 Ah (max) |
| Rated Voltage | 80 V | 80 V |
Parameters are based on a two-section mast with a 3 m lifting height. Battery type: lithium or lead-acid. Specifications are for reference — please refer to the actual goods.
Options
- Side-out battery solution for fast exchange under heavy, continuous duty
- Lithium or lead-acid battery; charger voltages 48/60/72/80 V with global mains options
- Enclosed cab with heater or air conditioning
- Solid tyres for indoor use or pneumatic tyres for outdoor use
- Attachments: rotating roll clamp, bale clamp, drum clamp, carton clamp, rotator, push-pull, load extender
- Nighttime LED searchlight
