Overview

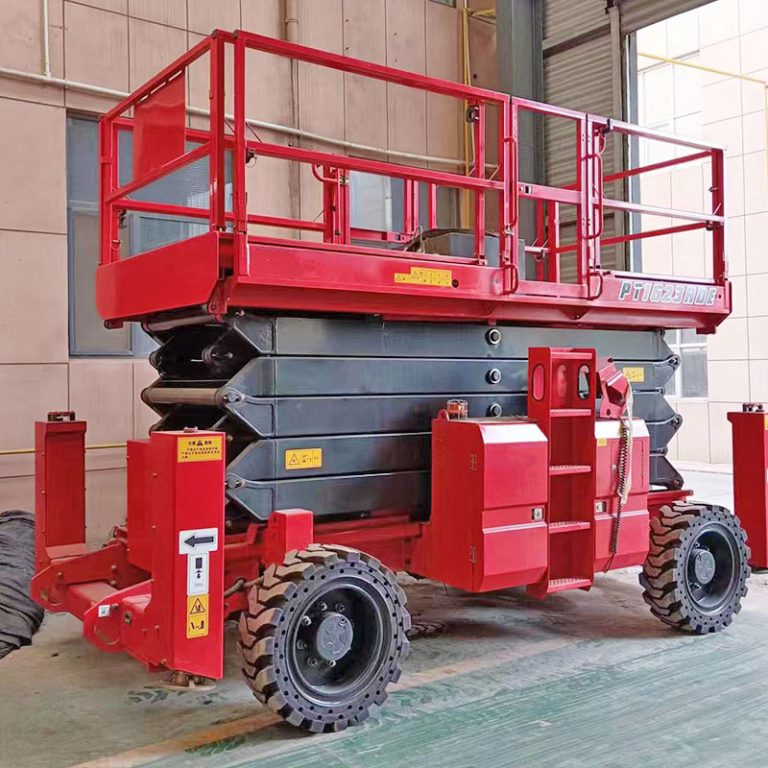

Rough Terrain Scissor Lift (also known as 4WD scissor lift, all terrain scissor lift, or off-road scissor lift) is designed for outdoor construction, maintenance, and installation work on uneven ground. These self-propelled platforms provide stable lifting performance, powerful climbing ability, and high safety standards for industrial and building site operations.
Our series includes both electric and diesel-powered models with maximum working heights from 12m to 22m and load capacities up to 750kg, ensuring high efficiency and reliability under harsh working environments.
Features
Powerful traction and stability for rough or sloped surfaces.
Working range from 12m to 22m, suitable for outdoor and industrial tasks.
Supports up to 750 kg with stable scissor mechanism.
Electric drive models are ideal for low-noise, green operation.
Smooth lifting and precise positioning.
Enlarged workspace for two operators or large materials.
Compliant with CE, ISO, EN280, and ANSI standards.
Modular design and centralized control system reduce downtime.
Specification
| Model | Power Type | Max Working Height | Platform Height | Load Capacity | Platform Size (L×W) | Drive / Steering | Gradeability | Lift Speed | Tire Size | Power Source | Machine Weight |
| KN1218ERT | Electric (Battery 48V/310Ah) | 14 m | 12 m | 360 kg | 2.97 × 1.65 m | 4WD / Proportional Control | 45% | 54s / 50s | 26×12–16 | Battery | 5730 kg |
| KN1623RT | Diesel (Kubota V2403) | 17.95 m | 15.95 m | 680 kg | 3.81 × 1.81 m | 4WD / Hydraulic Steering | 40% | 55s / 65s | 33×12–20 | Diesel | 7980 kg |
| KN2025ERT | Electric (Battery 48V/560Ah) | 22 m | 20 m | 750 kg | 4.54 × 2.25 m | 4WD / Proportional Control | 30% | 90s / 75s | 36×14–20 | Battery | 14550 kg |
