Overview

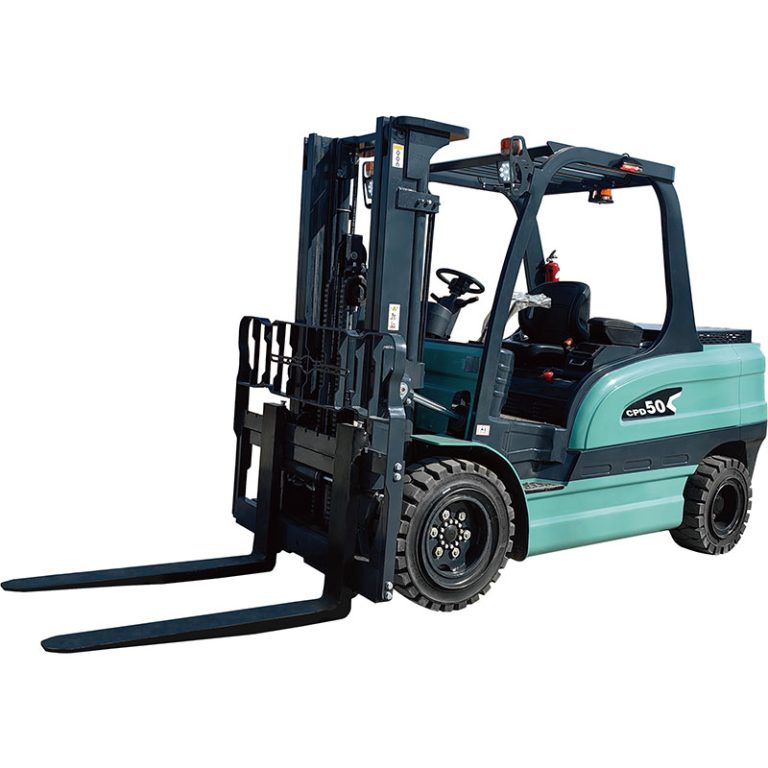

The CPD50 5.0 Ton Electric Forklift is engineered for the most demanding heavy-lifting tasks. Built on a high-voltage 80V platform, it delivers performance comparable to internal combustion forklifts but with zero emissions and significantly lower maintenance costs. The CPD50 features a reinforced mast and chassis to handle 5-ton loads safely. Its advanced AC control system ensures precise handling of heavy goods, making it ideal for manufacturing, ports, and construction supply industries. With its massive solid tires and powerful lifting motors, the CPD50 is the ultimate green solution for heavy industry.
Features
The 80V system reduces energy loss and heat generation, prolonging component life during heavy-duty cycles.
High-power lifting motors (21KW) allow for fast and controlled lifting speeds of up to 0.28 m/s fully loaded.
A wide wheelbase (2045mm) and wide tread ensure the forklift remains planted during turns and high lifts.
Designed with thickened steel and automotive-grade waterproofing to withstand harsh industrial environments.
Specification
| Model | CPD50 |
| Rated Capacity (Q) | 5000 kg |
| Load Center (C) | 600 mm |
| Max. Lifting Height (h3) | 3000 mm (Standard) |
| Turning Radius (Wa) | 2800 mm |
| Vehicle Weight | 6200 kg |
| Drive Motor Power | 18 KW |
| Lifting Motor Power | 21 KW |
| Battery | 80V / 500Ah |
