Overview

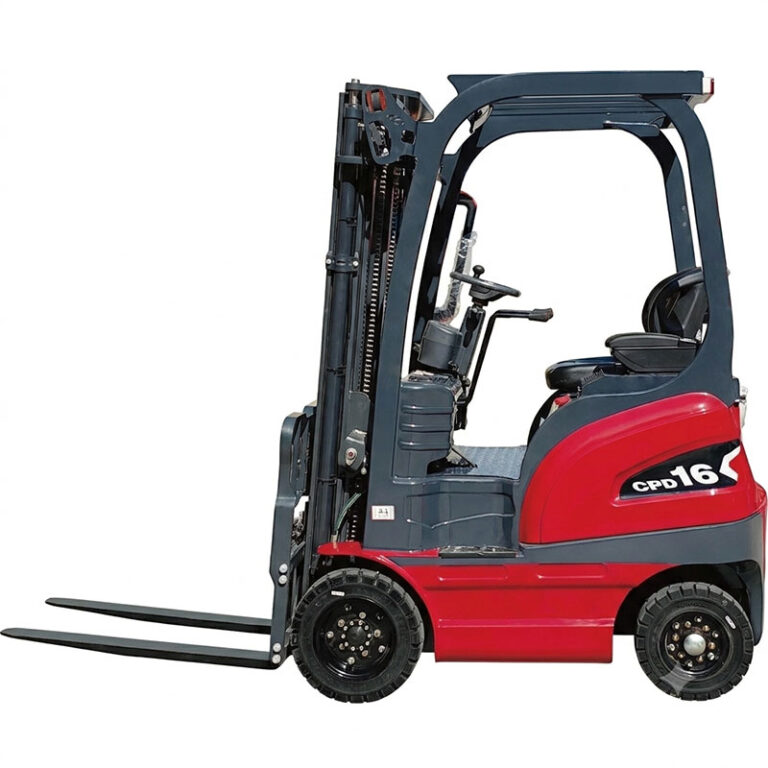

The KCCL Lift short wheelbase electric forklift is built for the tightest material-handling environments. With a wheelbase of just 990–1380 mm and a minimum turning radius of 1460 mm, it turns and repositions in aisles a standard counterbalance truck cannot work in — while the four-wheel chassis keeps the stability a three-wheel machine gives up. Rated at 1200–2000 kg with a 500 mm load centre and 3000 mm standard lifting height, it runs a 48 V AC drive system with lithium or lead-acid battery options. Outstanding manoeuvrability, excellent passability and technically optimised stability make it the right truck for compact spaces, narrow aisles and work that demands frequent steering.
Features
990 mm wheelbase and a 1460 mm turning radius
The truck turns inside aisles a standard counterbalance forklift cannot enter, and repositions with fewer shunts. That lets you narrow rack aisles to win back storage positions — or simply move more pallets per shift in the aisles you already have.
Evidence: wheelbase 990–1380 mm; minimum turning radius 1460 mm; right-angle stacking aisle of 2820 mm with 1200×1000 mm pallets (KN-CPD12).
Four-wheel chassis, not three
A short wheelbase delivers the agility, while four wheels keep a wide, stable support base. Operators can carry rated loads at height with confidence instead of trading stability for agility as they would on a three-wheel truck.
Evidence: 2×2/2 wheel configuration; rated 1200–2000 kg at a 500 mm load centre; technically optimised stability.
48 V AC drive with one-key three-mode control
A high-frequency MOSFET controller gives smooth travel and lift with regenerative braking, reverse braking and ramp anti-slip. One-key switching between economic, power and strong modes lets each operator match power draw to the task — saving energy on light runs and holding full torque on ramps.
Evidence: optimised hydraulic system reduces whole-vehicle energy consumption by 20%; drive motor 4–5.5 kW; 48 V / 300–350 Ah battery.
Thickened special-steel forks and multi-piece composite chain
The forks resist deformation under repeated heavy pick-ups and the composite chain runs smoother with higher carrying capacity than an ordinary chain. High-cycle operations therefore go longer between service stops and unplanned downtime.
Evidence: fork sizes 32/35/40 × 100 × 1070 mm; multi-piece composite chain fitted as standard.
Electromagnetic parking brake and ergonomic cockpit
Automatic hill hold on slopes, assisted braking, an adjustable steering wheel and a 150 mm adjustable seat keep the driver comfortable and in control. Over a full shift that shows up as fewer handling errors and less operator fatigue.
Evidence: 15% gradeability; seat adjustable 150 mm fore/aft with seat belt; hydraulic + mechanical travel brake with mechanical parking brake.
Solid tyres and zero-emission electric drive
Solid tyres remove the risk of blowouts and loss of control, and electric drive produces no exhaust with markedly lower noise. The truck can therefore work indoors around people, food and finished goods where an engine-powered truck cannot.
Evidence: standard solid tyres; AC electric drive; manufactured under ISO9001 with CE, EAC and TUV certification.
Application

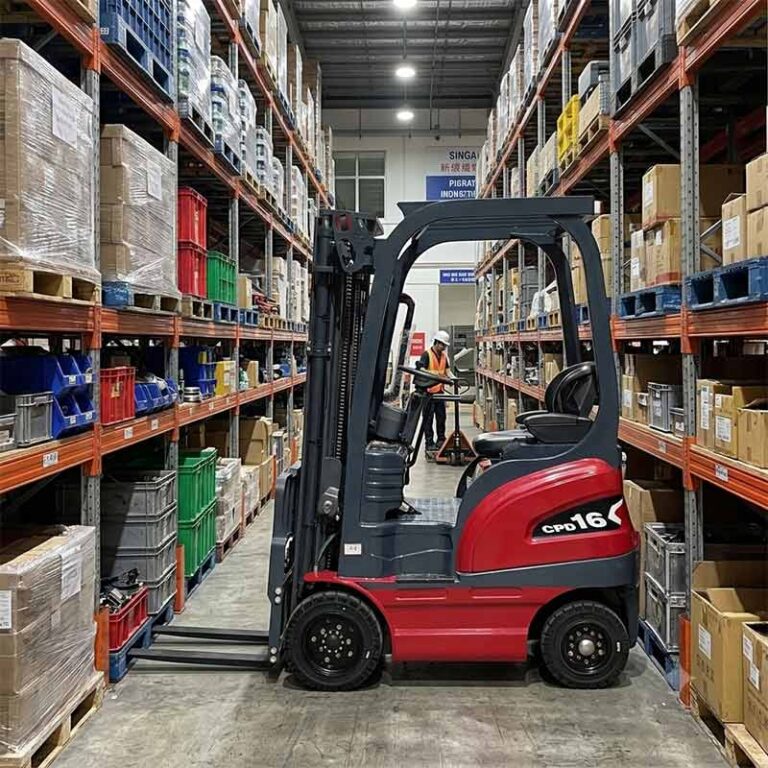

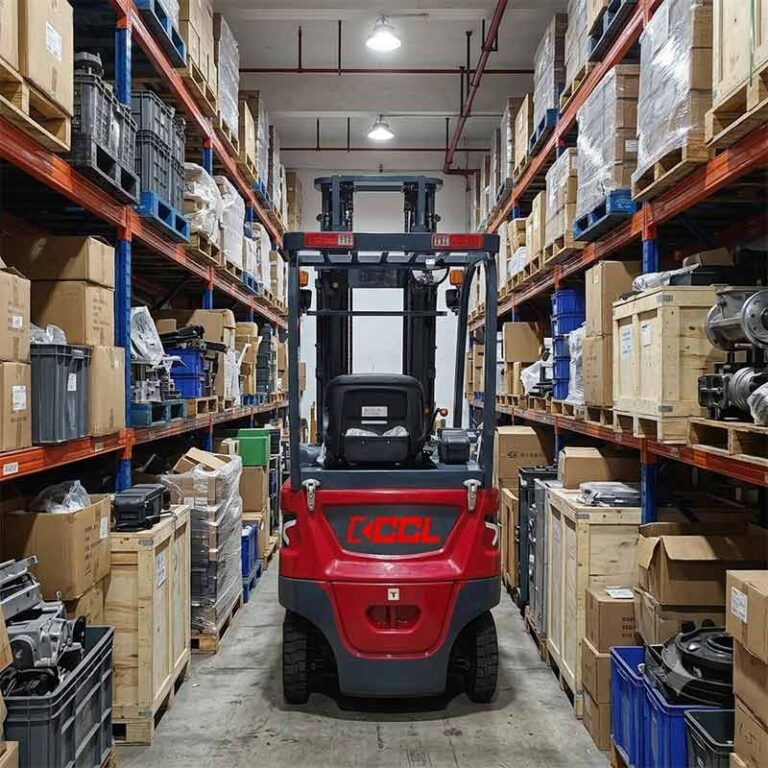

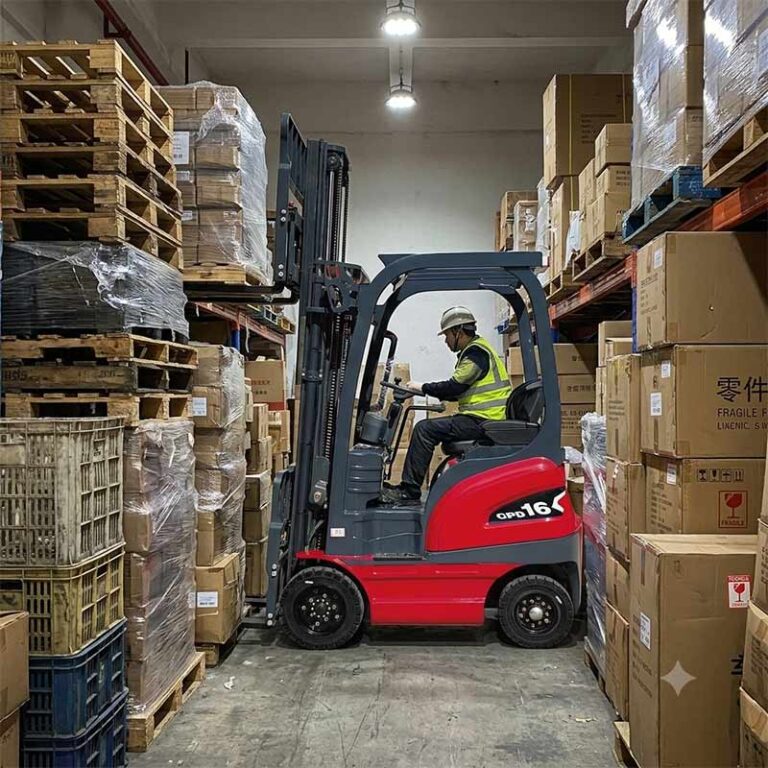

Purpose-built for material handling in compact spaces, narrow aisles and operations with frequent steering — dense racking and small warehouses, retail and distribution back-of-house, container and truck loading in confined yards, and production lines where the truck must weave between machines. Solid tyres and zero-emission drive suit indoor and enclosed environments where noise and air quality matter.
Specification
| Model | KN-CPD12 | KN-CPD16 | KN-CPD20 |
|---|---|---|---|
| Power | Electric | Electric | Electric |
| Operation Type | Seated | Seated | Seated |
| Rated Capacity | 1200 kg | 1600 kg | 2000 kg |
| Load Center | 500 mm | 500 mm | 500 mm |
| Front Overhang | 340 mm | 340 mm | 340 mm |
| Wheelbase | 990 mm | 1170 mm | 1380 mm |
| Vehicle Weight (incl. battery, unladen) | 2480 kg | 2600 kg | 3600 kg |
| Drive Wheel Size | 500-8 | 18×7-10 | 18×7-10 |
| Steering Wheel Size | 400-8 | 400-8 | 400-8 |
| Number of Wheels (drive) | 2×2/2 | 2×2/2 | 2×2/2 |
| Mast / Fork Tilt (α/β) | 5/9° | 5/9° | 5/9° |
| Mast Lowered Height | 2150 mm | 2150 mm | 2140 mm |
| Max. Lifting Height | 3000 mm | 3000 mm | 3000 mm |
| Mast Extended Height | 3960 mm | 3960 mm | 3960 mm |
| Roof Guard (Cabin) Height | 2120 mm | 2160 mm | 2160 mm |
| Seat Surface Height | 1000 mm | 1000 mm | 1120 mm |
| Vehicle Length | 2710 mm | 2890 mm | 3010 mm |
| Length to Vertical Plane of Fork | 1600 mm | 1780 mm | 1900 mm |
| Overall Width | 1100 mm | 1100 mm | 1100 mm |
| Fork Size (s/e/l) | 32×100×1070 mm | 35×100×1070 mm | 40×100×1070 mm |
| Fork Frame Outer Width | 1040 mm | 1040 mm | 1040 mm |
| Min. Ground Clearance (Mast) | 110 mm | 110 mm | 110 mm |
| Min. Body Ground Clearance | 100 mm | 100 mm | 80 mm |
| Aisle Width (1200×1000 pallets) | 2820 mm | 3000 mm | 3350 mm |
| Aisle Width (800×1200 pallets) | 3020 mm | 3200 mm | 3550 mm |
| Turning Radius | 1460 mm | 1650 mm | 1760 mm |
| Traveling Speed (full/unladen) | 7/8 km/h | 7/8 km/h | 7/8 km/h |
| Lifting Speed (full/unladen) | 0.24/0.3 m/s | 0.24/0.3 m/s | 0.24/0.3 m/s |
| Descending Speed (full/unladen) | 0.39/0.34 m/s | 0.39/0.34 m/s | 0.39/0.34 m/s |
| Max. Gradeability (full/unladen) | 15% | 15% | 15% |
| Traveling Brake | Hydraulic + Mechanical | Hydraulic + Mechanical | Hydraulic + Mechanical |
| Parking Brake | Mechanical | Mechanical | Mechanical |
| Drive Motor (S2 60 min) | 4 kW | 5 kW | 5.5 kW |
| Lifting Motor (S3 15%) | 4 kW | 5 kW | 5.5 kW |
| Battery | 48V / 300 Ah | 48V / 300 Ah | 48V / 350 Ah |
| Drive Control | Alternating current | Alternating current | Alternating current |
Parameters are based on a two-section mast with a 3 m lifting height. Battery type: lithium or lead-acid. Specifications are for reference — please refer to the actual goods.
Options
- Side-out battery solution for fast battery exchange under heavy, continuous duty
- Lithium or lead-acid battery; charger voltages 48/60/72/80 V with global mains options
- Enclosed cab with heater or air conditioning
- Solid tyres for indoor use or pneumatic tyres for outdoor use
- Attachments including sideshift, fork positioner, clamps and rotator
- Nighttime LED searchlight
