Overview
KCCLD’s Electric Articulated Boom Lifts are a common and environmentally friendly aerial work platform, manufactured by a leading company with professional CE certification. Controlled via an electric panel, their agile articulated boom provides convenient and efficient results, improving both the efficiency of aerial work and the accuracy of material handling. They are ideal for warehouses, large shopping malls, manufacturing plants, and various other locations.
Features
Features and Advantages of Electric Articulated Boom Lifts:
Electric articulated boom lifts use electric panel control, eliminating the need for traditional fossil fuels such as coal, oil, and nuclear power, significantly reducing carbon emissions and pollution. Therefore, they are an excellent choice for high-requirement cleanrooms.
The working height ranges from 11.5 meters to 22.5 meters, the load capacity ranges from 250 kg to 350 kg, and the maximum load capacity is 3 people. The platform can accommodate a maximum of 3 people.
Depending on the working environment, both lithium battery and lead-acid battery configurations are available.
The electric articulated boom lift is designed with extremely high safety performance, thus possessing superior stability. It can descend rapidly in emergencies and has a powerful control system, making it the choice of most customers for high-altitude operations.
Main Parts

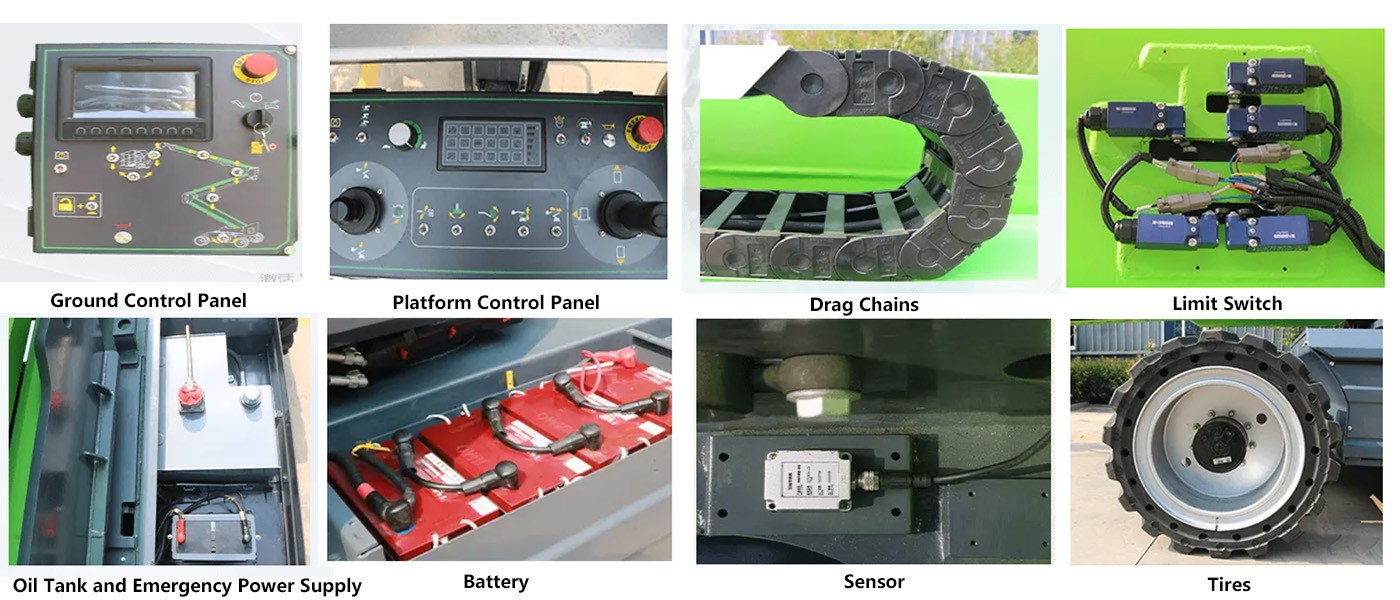

Main Parts of JOVOO Articulated Boom Lift
Specification
| Model | V16 |
| Max. Working Height | 17.7m |
| Max. Platform Height | 15.7m |
| Max. Up and Over Clearance | 7.3m |
| Max. Working Radius | 8.9m |
| Platform Dimensions (L*W) | 1.4*0.76m |
| Length-Stowed | 7.2m |
| Width | 1.90m |
| Height-Stowed | 2.0m |
| Wheelbase | 2.0m |
| Ground Clearance-Center | 0.25m |
| Productivity | |
| Max. Lift Capacity | 230kg |
| Platform Occupancy | 2 |
| Platform Rotation | ±80° |
| Jib Rotation | ±70° |
| Turntable Rotation | 355° |
| Drive Speed-Stowed | 5.0km/h |
| Driving Gradeability | 0.3 |
| Max. Working Angle | 3° |
| Battery | 48V/320Ah |
| Control Voltage | 24V |
| Pump Motor | 4kw |
| Drive Motor | 3.3kw |
