Overview

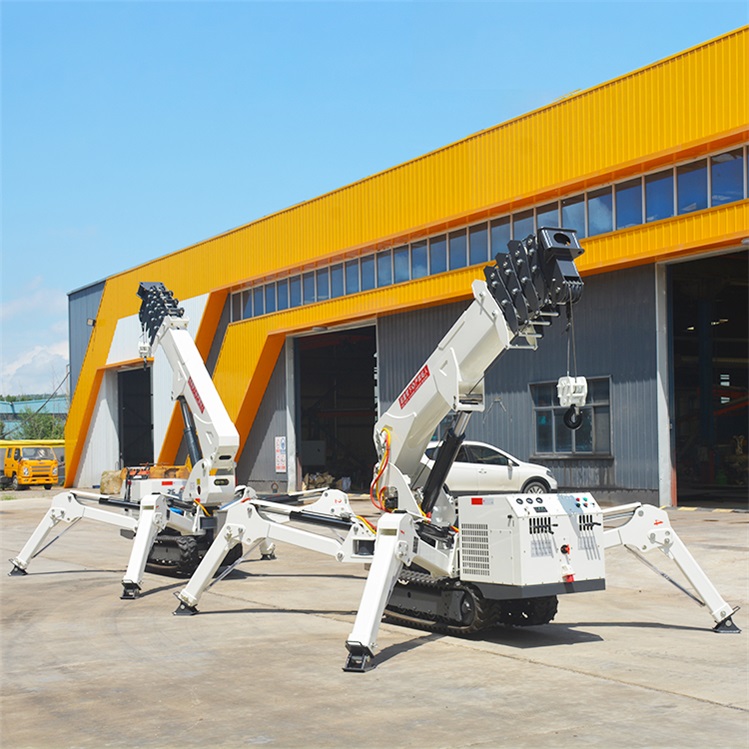

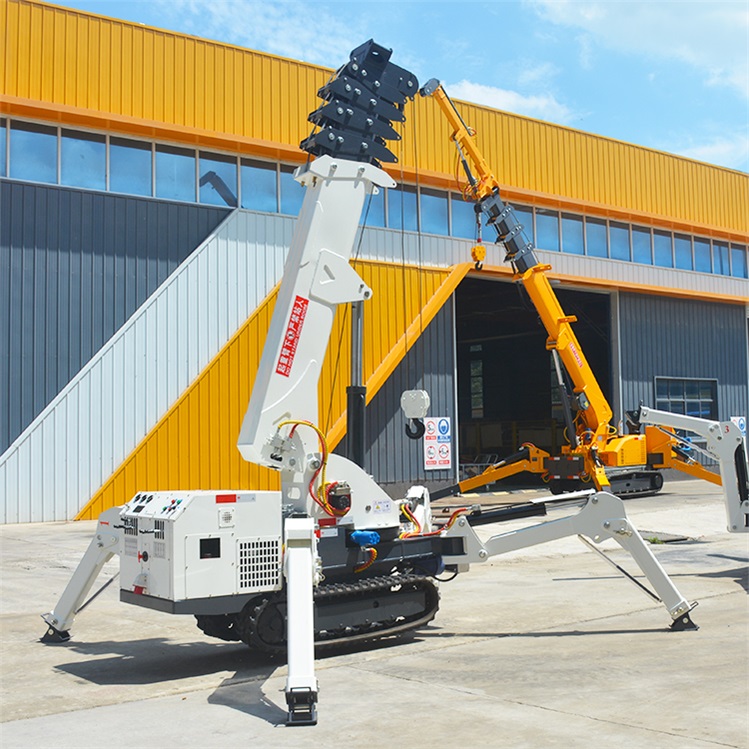

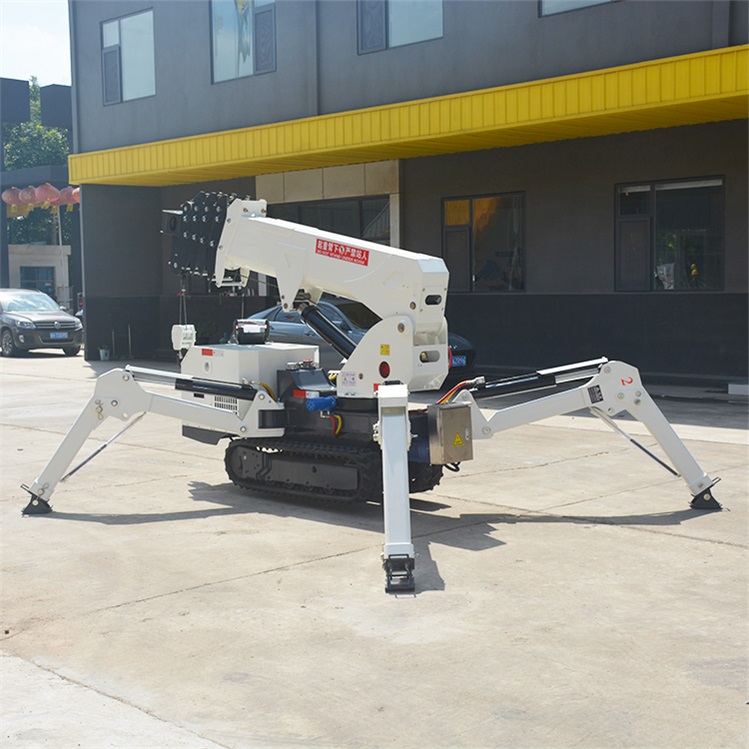

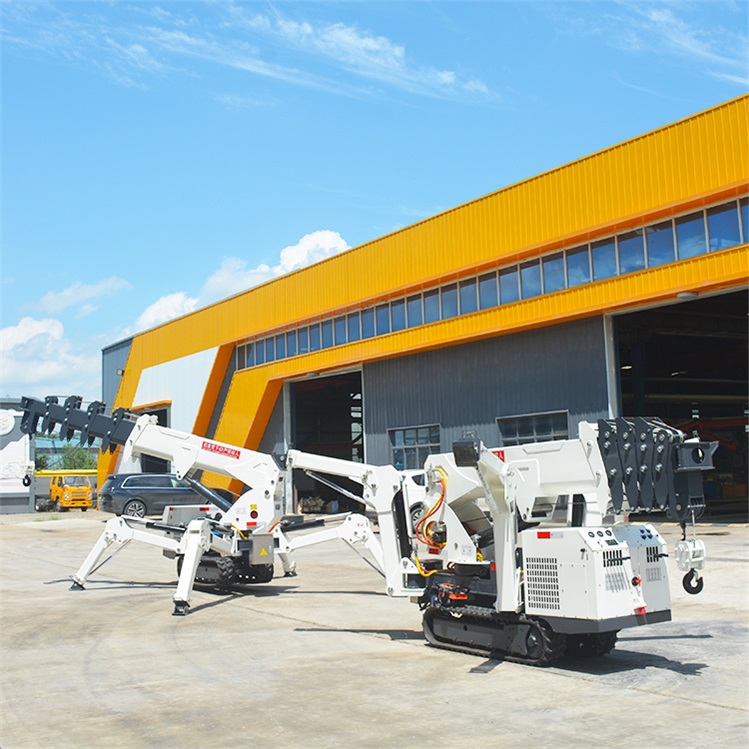

Compact Power for Confined Spaces The Kinocranes 3 Ton Crawler Spider Crane is designed for precision lifting in the most challenging environments. With its compact body and lightweight design, it is the ideal solution for rooftop work, substation maintenance, and indoor installation where traditional cranes cannot access. Engineered with a dual-power option (Diesel & Electric), it ensures continuous operation indoors and outdoors.
Features
Compact structure allowing access to narrow spaces, elevators, and corridors.
Equipped with a rubber crawler chassis that prevents damage to delicate flooring and ground surfaces.
The boom is constructed from high-strength manganese steel, ensuring superior lifting capacity and durability.
Standard diesel engine with an optional electric motor for dual-power operation, perfect for low-emission zones.
Specification
| Model | 3-Ton Crawler Spider Crane |
| Max Lifting Capacity | 3.0 Tons |
| Self Weight | 2.7 Tons |
| Max Working Radius | 10 m |
| Boom Type | 2.4m x 6-section lifting arm (Customizable) |
| Dimensions (L x W x H) | 3.5m x 0.8m x 1.85m |
| Engine Power | Changchai 380G (14.7KW) / Optional Electric |
| Outrigger Type | Manual screw-out + Hydraulic support |
Technical Highlights
Features a torque display system and is available with a wireless remote control for safe, easy operation.
Boasts a 360-degree rotating chassis and hydraulic cylinder outriggers for stable positioning on uneven terrain.
Integrated torque indicator and safety limiters to prevent overloading.
Application
Steel structure installation in buildings and rooftops.
Substation maintenance and electrical equipment installation.
Curtain wall and indoor glass installation in narrow spaces
