Overview

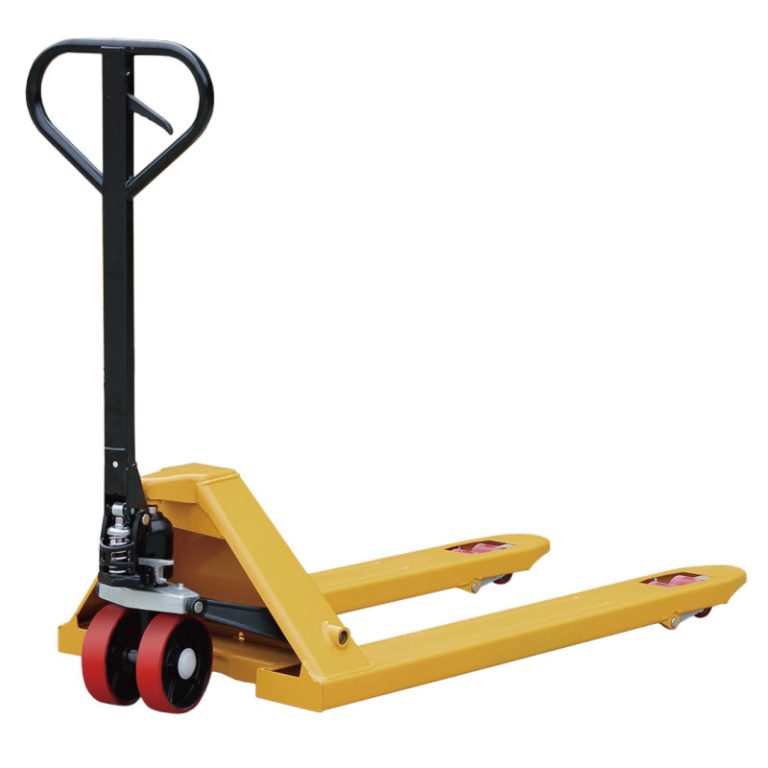

The CBD15-50Y Manual Hydraulic Pallet Jack, also known as a Hand Pallet Truck, Hydraulic Hand Stacker, or Pallet Mover, is an essential tool for efficient, safe, and economical material handling. It is widely used in warehouses, logistics centers, factory floors, retail stores, and cold storage facilities for short-distance pallet transport and loading/unloading.
Features
Choose between the AC Integrated Cast Pump, known for excellent sealing and consistent, stable lifting power, or the DF Welded Pump Body, which is robust and easy to maintain.
With a large rated capacity range (1.5T-5T), it easily handles heavy loads. Fork Length (Optional 800-1500 mm), Fork Width, and Fork Over Width can be customized to perfectly fit various single-face and double-face pallets (open bottom).
Equipped with standard Polyurethane (PU) Nylon (PA) wheels, offering low rolling resistance, quiet operation, and floor protection.
The handle features an ergonomic grip and a three-position (raise/lower/neutral) control lever for simple operation, minimizing operator fatigue.
Specification
| Feature | Unit | CBD15-50Y | Note |
| Power unit | / | Manual | / |
| Rated capacity | kg | 1500–5000 | optional |
| Load center | mm | 500 | / |
| Fork lifting height | mm | 120 | / |
| Turning radius | mm | 1280 | / |
| Vehicle weight | kg | 70 | / |
| Fork length | mm | 1100/1200 | optional |
| Fork outer width | mm | 550*685 | optional |
| Fork inner width | mm | 230*365 | optional |
| Fork height above ground (lowest) | mm | 55*85 | optional |
| Steel thickness | mm | 3/3.5/4 | optional |
| Hydraulic pump type | / | AC pump/DF pump | optional |
| Applicable pallet | / | Single-sided pallet | / |
