Overview

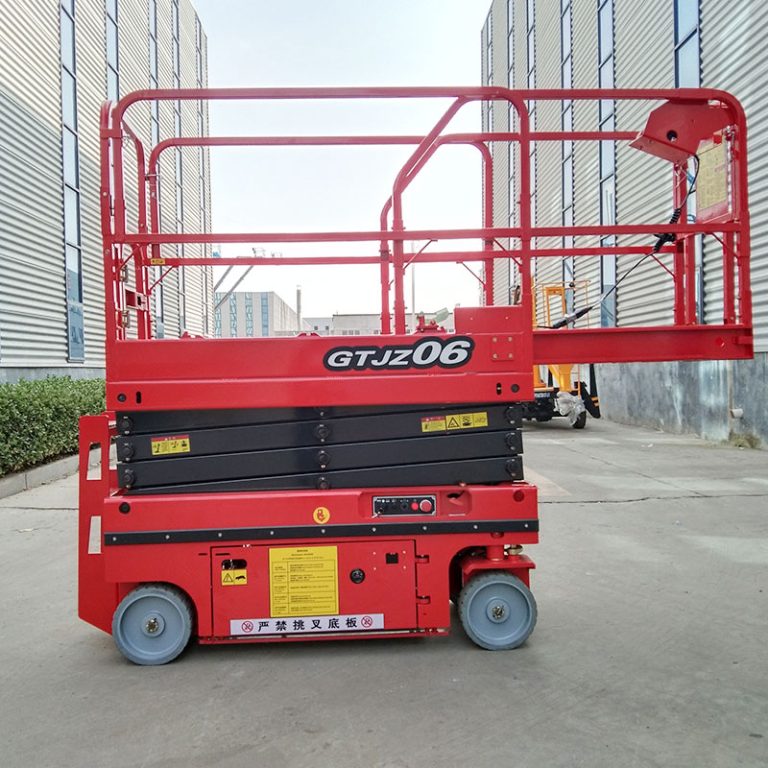

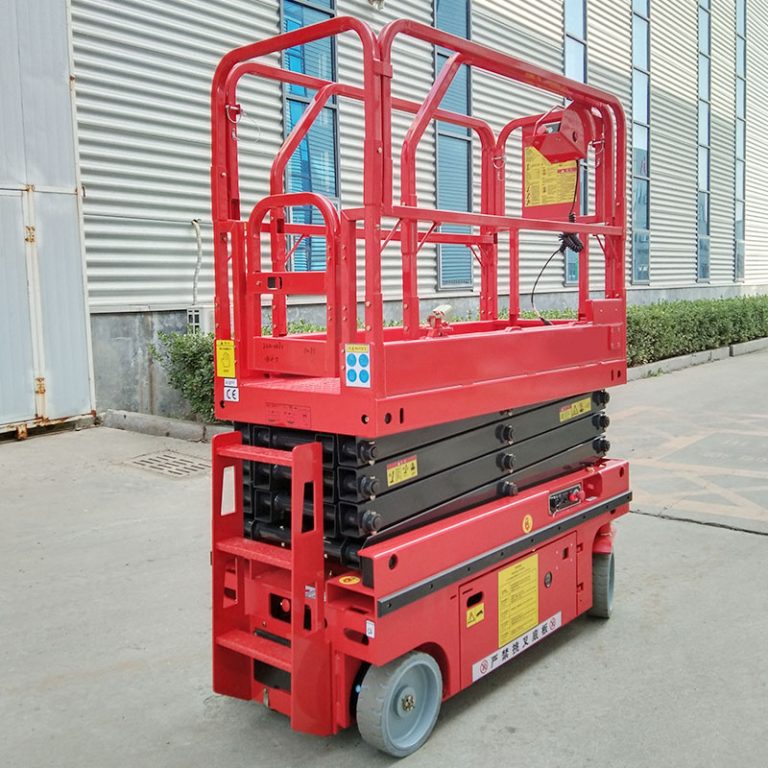

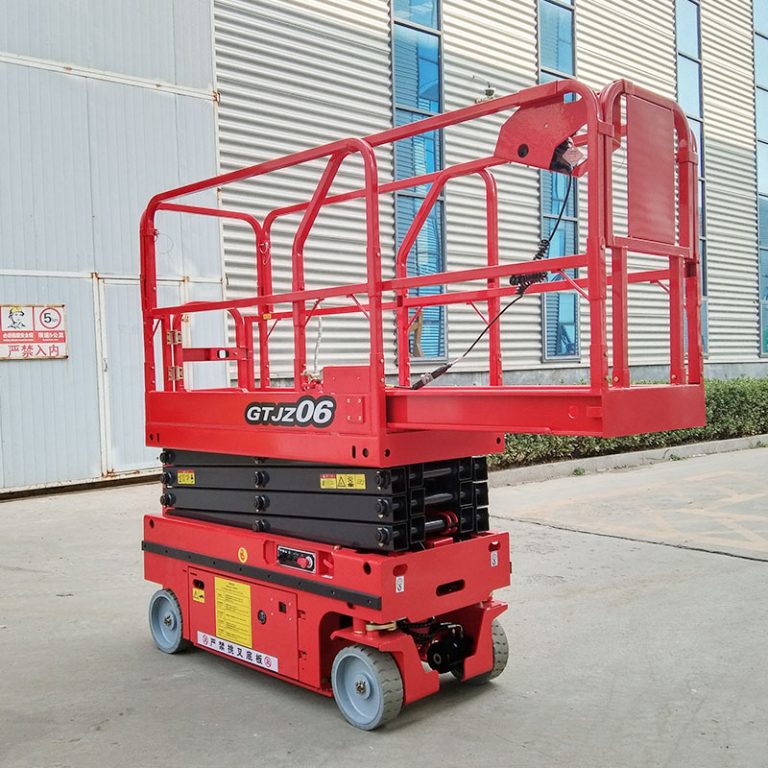

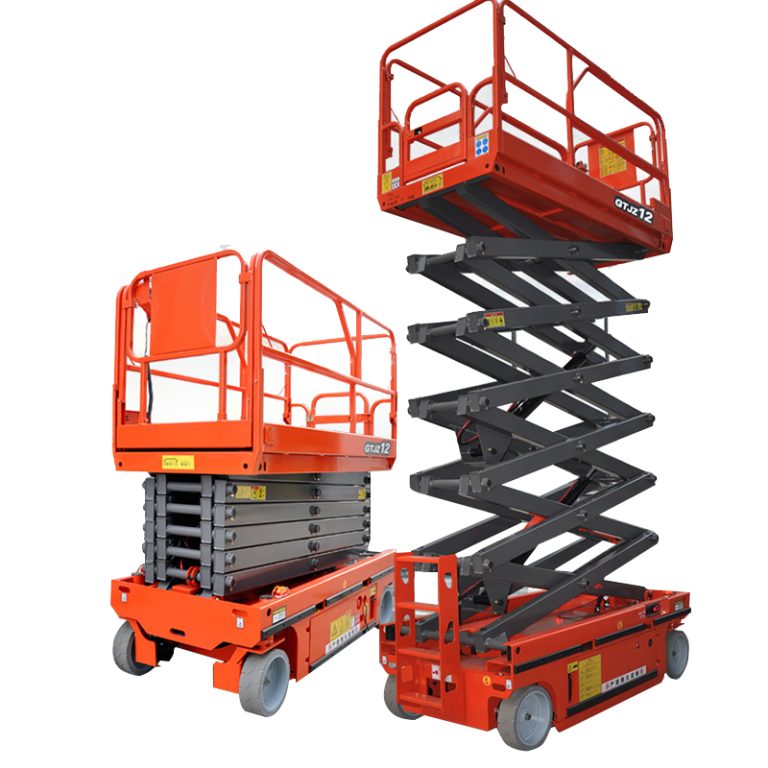

Our self propelled scissor lift series is designed for both indoor and outdoor aerial work, offering stable lifting from 3m to 16m. Equipped with electric drive and hydraulic lift systems, these electric scissor lifts feature proportional control, automatic braking, and comprehensive safety protection systems for reliable and efficient operation.
Features
Proportional control for precise operation.
Automatic braking system ensures safety during stopping and parking.
Extendable platform for larger working areas.
Automatic pothole protection system for enhanced ground stability.
Emergency lowering system and emergency stop button for unexpected power loss.
Horn and flashing light for operation warning.
Battery protection & charging system for longer service life.
Self-locking gate & safety inspection support bar.
Full-travel drive function allows movement even when elevated.
Tilt protection system and anti-collision bars.
Non-marking solid tires for indoor clean environments.
Hydraulic hose burst protection system and fault diagnostic system.
Standard forklift holes for easy loading and transport.
Specification
| Model | Max. Lifting Height (m) | Work Load (kg) | Platform Size(mm) | Outline Dimension Guardrail Unfolded (mm) | Extended Platform (mm) | Dead Weight(kg) |
| KNSL-4 | 4 | 240 | 1290*700 | 1425*760*2005 | 600 | 980 |
| KNSL-6 Mini | 5.8 | 230 | 1670*740 | 1855*790*2210 | 900 | 1620 |
| KNSL-6A | 6 | 380 | 2260*810 | 2490*840*2200 | 900 | 1880 |
| KNSL-6 | 6 | 550 | 2260*1150 | 2490*1190*2200 | 900 | 2150 |
| KNSL-8A | 8 | 230 | 2260*810 | 2490*840*2320 | 900 | 2050 |
| KNSL-8 | 8 | 450 | 2260*1130 | 2490*1190*2320 | 900 | 2300 |
| KNSL-10 | 10 | 320 | 2300*1120 | 2490*1190*2460 | 900 | 2540 |
| KNSL-12 | 11.8 | 320 | 2300*1120 | 2490*1190*2580 | 900 | 2880 |
| KNSL-14 | 13.8 | 227 | 2640*1125 | 2840*1395*2592 | 900 | 3410 |
Advantages
Compact structure and strong lifting performance.
Low noise, long battery life, suitable for indoor/outdoor work.
Efficient hydraulic system with reliable oil control valves.
Smart diagnostic system simplifies maintenance.
High-strength steel structure ensures long lifespan.
Application
Ideal for warehouse maintenance, installation work, indoor/outdoor construction, and equipment repair where stable, mobile, and quiet aerial lifting is required.
Need a customized self propelled scissor lift or hydraulic scissor lift table? Contact us now or send your requirements for lifting height, load, and working environment.
