Overview
A dual mast aerial work platform is an essential piece of equipment designed for efficient and safe elevated operations in various industrial, construction, and maintenance settings. As a leading manufacturer and supplier, KCCL Lift specializes in providing high-quality dual mast aerial work platforms that combine stability, versatility, and cost-effectiveness.These platforms feature a robust dual mast structure, ensuring enhanced safety with features such as deadman switches, emergency lowering systems, and self-locking gates. Our platforms are designed for unparalleled versatility, offering maximum working heights ranging from 8 m to 14 m to suit various project requirements. Engineered with a robust dual-mast structure, this platform provides exceptional stability under load, supporting capacities of 200kg to 300kg to safely accommodate two workers with their tools . KCCL Lift ensures each unit is equipped with critical safety features, including dual controls (platform and ground), KCCL Lift delivers reliable solutions tailored to meet diverse customer needs, making it a trusted choice for projects worldwide.
Features

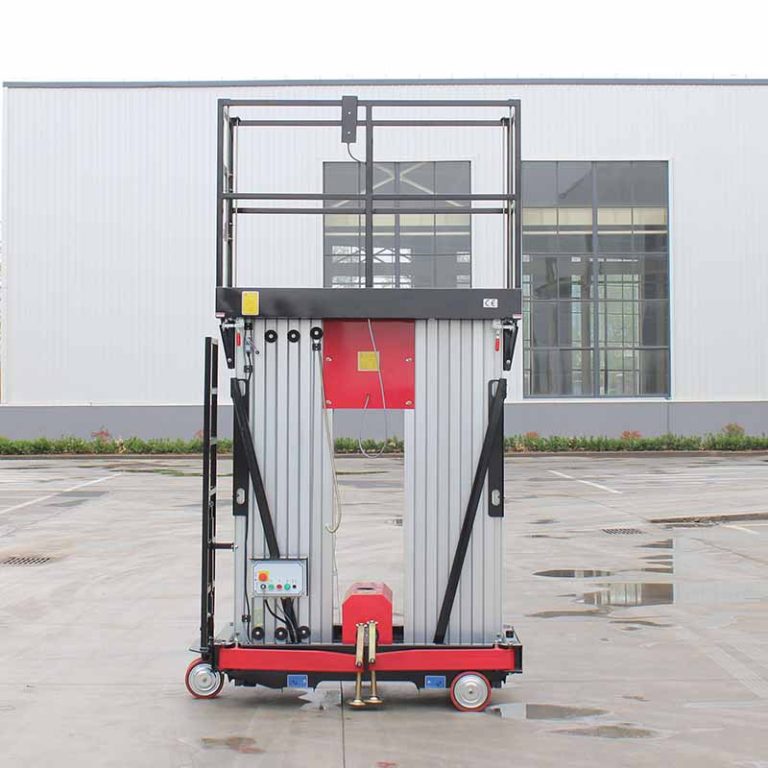

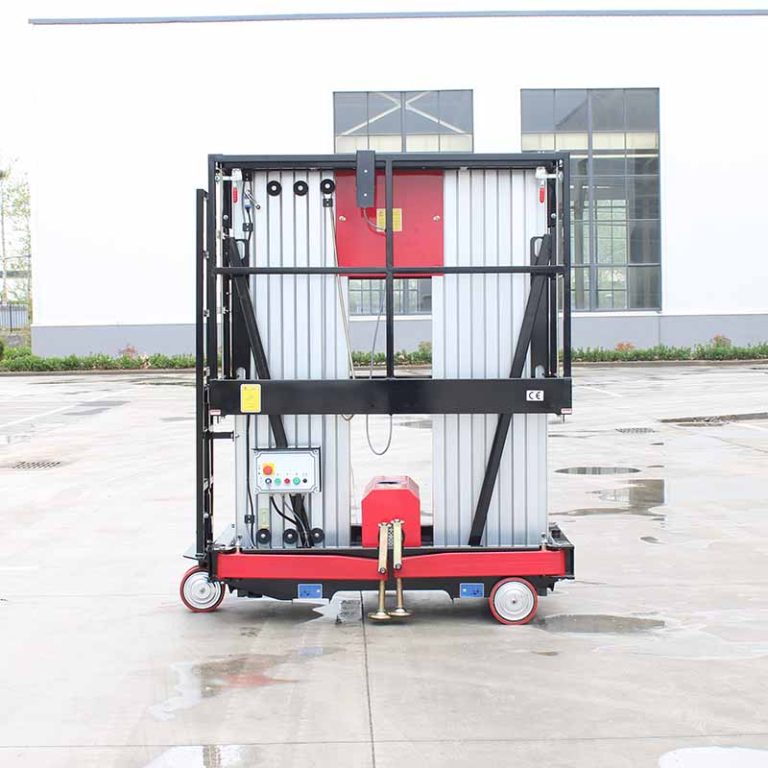

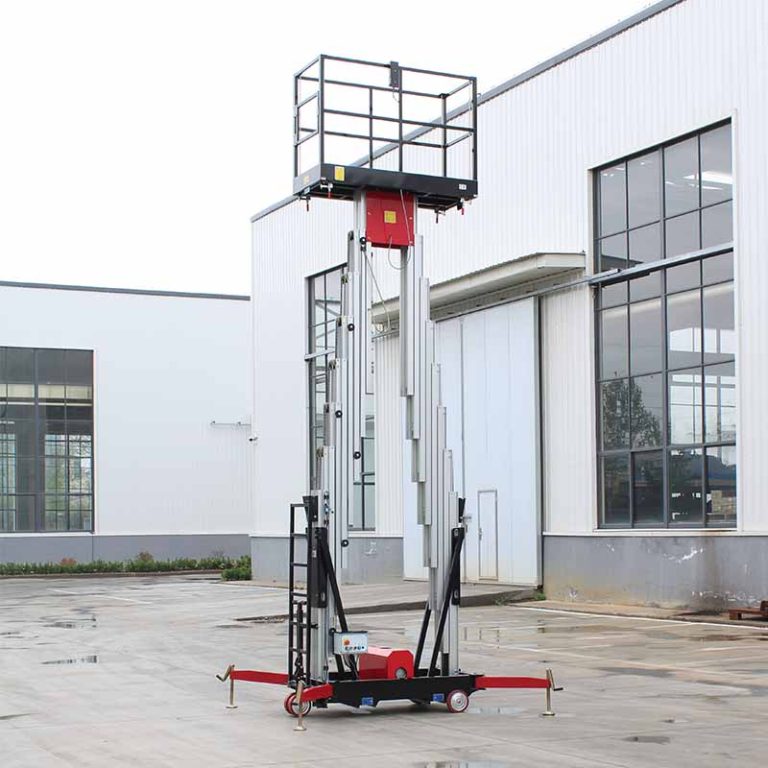

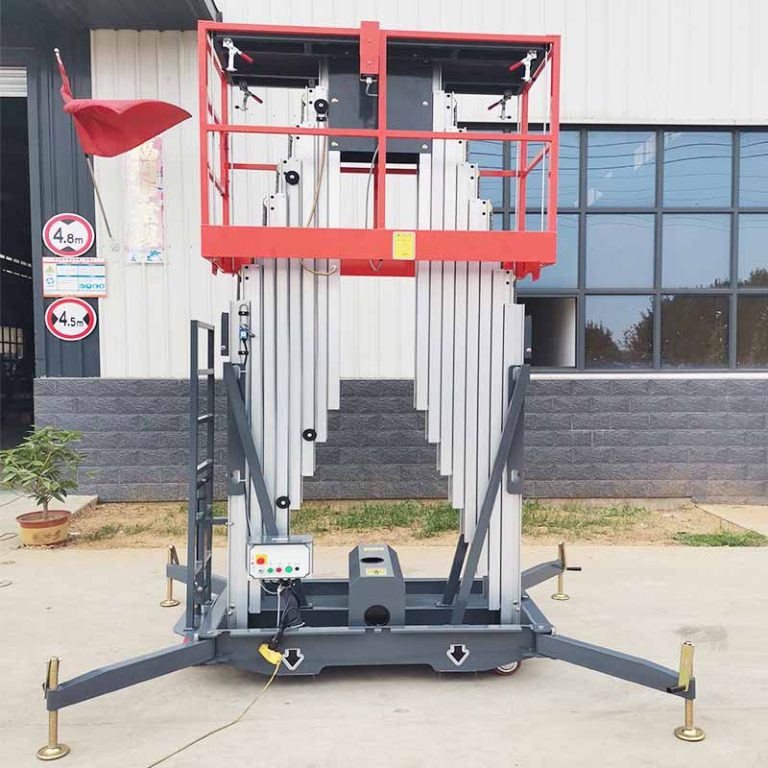

Vertical lifting system,with minimal platform swaying. It’s made of high-strength steel,resistant to wind and pressure,suitable for uneven ground,with uniform weight distribution,reducing the risk of overturning.
Using electric drive,with options for charging and batteries,no exhaust emissions,suitable for indoor and enclosed space operations. Small turning radius,can move flexibly between passageways and shelves,the overall weight is small,exerting little pressure on the ground,suitable for fragile surfaces such as tiles.

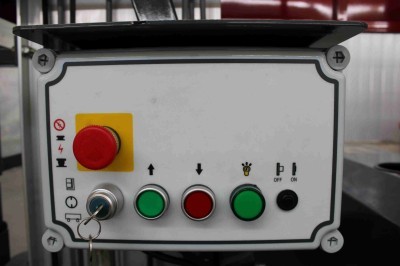

Supports internal button control on the platform and ground remote control,suitable for different operation scenarios. Equipped with overload protection and overload prevention functions,anti-slip treatment on the surface, and a safety guardrail to prevent falls.
Specification
| Model | KCCLAWP2-6 | KCCLAWP2-8 | KCCLAWP2-10 | KCCLAWP2-12 | |
| Loading Capacity | 200kg | 200kg | 200kg | 200kg | |
| Occupants | 1 | 1 | 1 | 1 | |
| Max. Working Height | 8m | 8m | 12m | 14m | |
| Max. Platform Height | 6m | 6m | 10m | 12m | |
| Overall Length | 1.54m | 1.54m | 1.76m | 1.76m | |
| Overall Width | 1m | 1m | 1m | 1m | |
| Overall Height | 1.99m | 1.99m | 1.99m | 1.99m | |
| Platform Dimension | 1.30m*0.62m | 1.30m*0.62m | 1.52m*0.62m | 1.52m*0.62m | |
| Outrigger Coverage | 1.77m*1.82m | 1.77m*1.82m | 2.1m*2m | 2.3m*2.3m | |
| Lifting Motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW | |
| Weight(AC) | 630kg | 630kg | 800kg | 830kg | |
| Option | DC | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah | 2x12V/100Ah |
| Motor | 2.2KW | 2.2KW | 2.2KW | 2.2KW | |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | |
Application

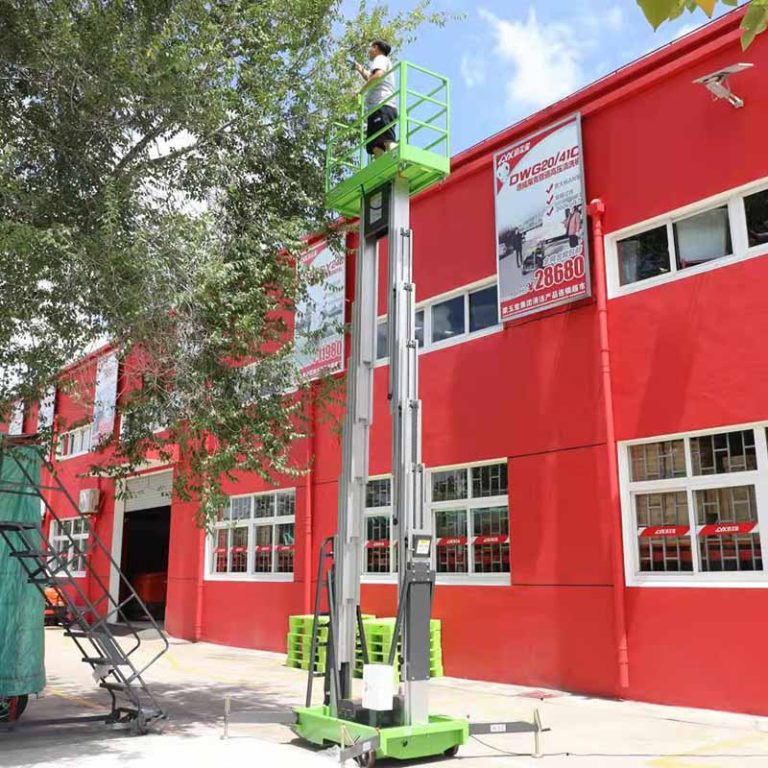

The dual mast aerial work platform has a wide range of applications and is suitable for high-altitude operations in various environments. The main application fields are as follows:
Used for construction and renovation work, it can be used in scenarios such as installing ceilings, lighting fixtures and air conditioning systems.
For warehouse operations, loading and unloading goods, installing cranes and other applications.
For indoor environments such as hotels, airports and shopping malls, for high-altitude work.
Why choose the KCCL LIFT Dual Mast Aerial Work Platform?
The Dual Mast structure outperforms single mast or scissor-type equipment, making it suitable for precise operations.
Compact design + small turning radius, solving the problem of operations in narrow spaces.
Compliant with OSHA/CE and other safety standards, reducing enterprise risks.
Electric drive reduces fuel/maintenance costs, suitable for long-term use.
