Overview

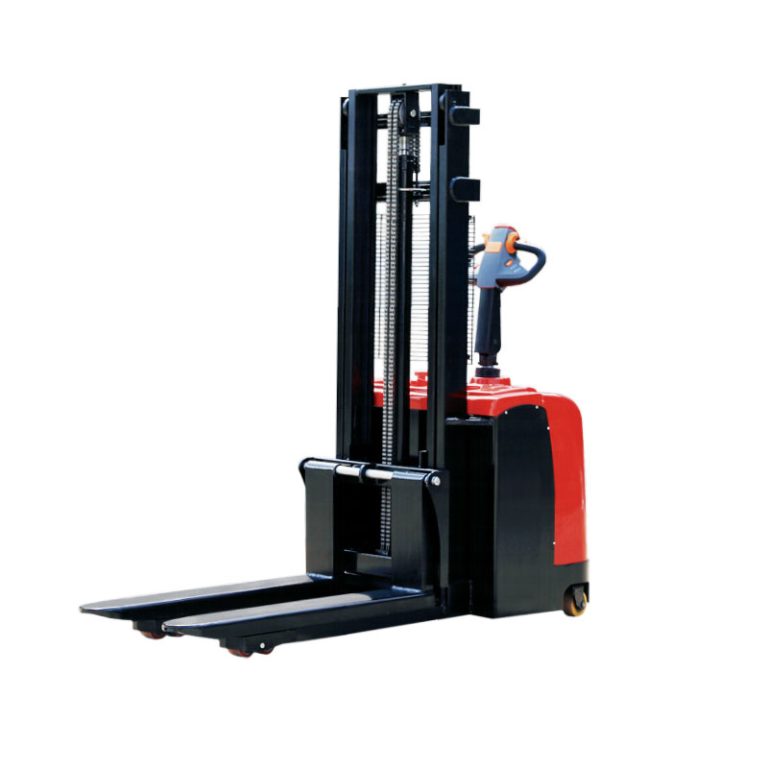

The CDD10-20 Electric Stacker, also known as an Electric Pallet Stacker or Powered Stacker, is a high-performance solution designed for medium to high-level warehousing operations. Its Standing type driving configuration combined with a tight 1550mm turning radius ensures excellent maneuverability in narrow warehouse aisles.
Features
Driving Type: Standing type.
Braking System: Features an Electromagnetic brake.
Speed Regulation: Utilizes a MOS tube regulation system.
Performance Metrics
Maximum Traveling Speed (unladen): 5.0km/h.
Maximum Lifting Speed (unladen): 125mm/s.
Maximum Gradeability (unladen): 8%.
Structure
Mast material is C-shaped steel.
Tires are Polyurethane type.
Load Center: 500m.
Vehicle Weight: Approximately 750kg.
Specification
| Category | Feature | Unit | CDD10-20 | Note |
| Model | Driving type | / | Standing type | / |
| Rated capacity | kg | 1000–2000 | optional | |
| Load center | mm | 500 | / | |
| Mast material | / | C-shaped steel | / | |
| Vehicle weight | kg | 750 | / | |
| Tire | Tires type | / | Polyurethane | / |
| Drive wheel size (diameter x width) | mm | 250×80 | / | |
| Front wheel size (diameter x width) | mm | 80×70 | / | |
| Balance wheel size (diameter x width) | mm | 100×50 | / | |
| Number of wheels (X=driving wheels) | / | 2001/2/4 | / | |
| Basic size | Lifting height | mm | 1600–5000 | optional |
| Vehicle height (when fork lowest) | mm | 2060–2500 | optional | |
| Vehicle height (when fork highest) | mm | 2060–5600 | optional | |
| Fork height above ground (lowest) | mm | 90 | / | |
| Vehicle length (pedal unfolded/folded) | mm | 2550/2050 | / | |
| Vehicle width | mm | 850 | / | |
| Fork length | mm | 1100 | / | |
| Maximum adjustable outer width of fork | mm | 550/680 | optional | |
| Turning radius | mm | 1550 | / | |
| Performance | Power unit | / | Electric | / |
| Traveling speed (full/unladen) | km/h | 3.0/5.0 | / | |
| Lifting speed (full/unladen) | mm/s | 90/125 | / | |
| Descending speed (full/unladen) | mm/s | 100/80 | / | |
| Max gradeability (full/unladen) | % | 5/8 | / | |
| Braking method | / | Electromagnetic brake | / | |
| Drive | Drive motor rated power | kW | 1.5 | / |
| Lifting motor rated power | kW | 2.2 | / | |
| Battery voltage/capacity | V/A | 24V/120AH | optional | |
| Speed regulation form | / | MOS tube regulation system | / |
