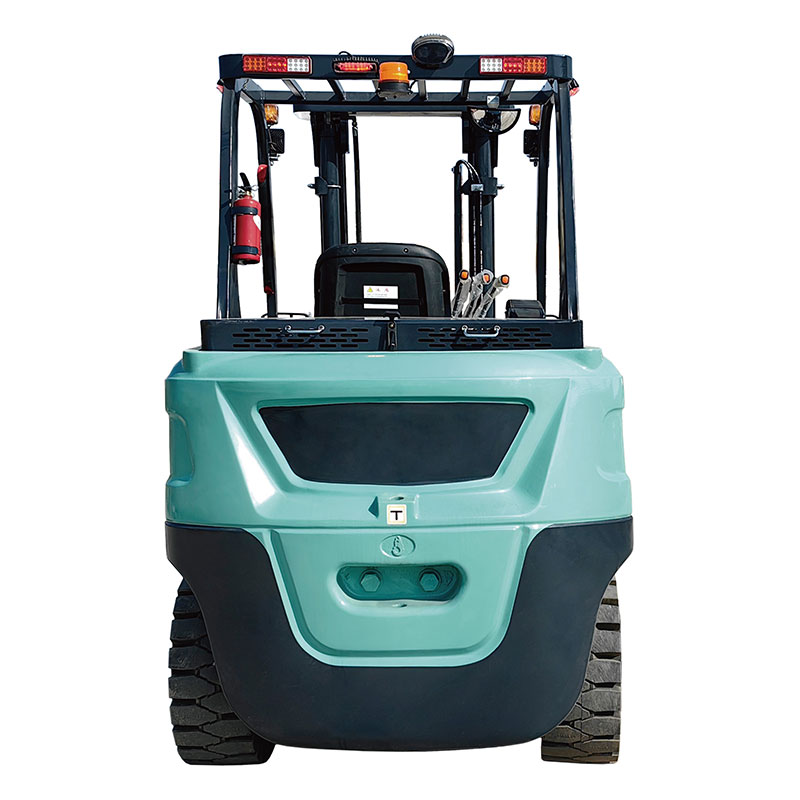

5 Ton Electric Forklift

Overview:

The CPD50 5.0 Ton Electric Forklift is engineered for the most demanding heavy-lifting tasks. Built on a high-voltage 80V platform, it delivers performance comparable to internal combustion forklifts but with zero emissions and significantly lower maintenance costs. The CPD50 features a reinforced mast and chassis to handle 5-ton loads safely. Its advanced AC control system ensures precise handling of heavy goods, making it ideal for manufacturing, ports, and construction supply industries. With its massive solid tires and powerful lifting motors, the CPD50 is the ultimate green solution for heavy industry.

Features:

• High Efficiency: The 80V system reduces energy loss and heat generation, prolonging component life during heavy-duty cycles.

• Precision Control: High-power lifting motors (21KW) allow for fast and controlled lifting speeds of up to 0.28 m/s fully loaded.

• Stable Footing: A wide wheelbase (2045mm) and wide tread ensure the forklift remains planted during turns and high lifts.

• Rugged Build: Designed with thickened steel and automotive-grade waterproofing to withstand harsh industrial environments.

Specification:

Model	CPD50
Rated Capacity (Q)	5000 kg
Load Center (C)	600 mm
Max. Lifting Height (h3)	3000 mm (Standard)
Turning Radius (Wa)	2800 mm
Vehicle Weight	6200 kg
Drive Motor Power	18 KW
Lifting Motor Power	21 KW
Battery	80V / 500Ah
