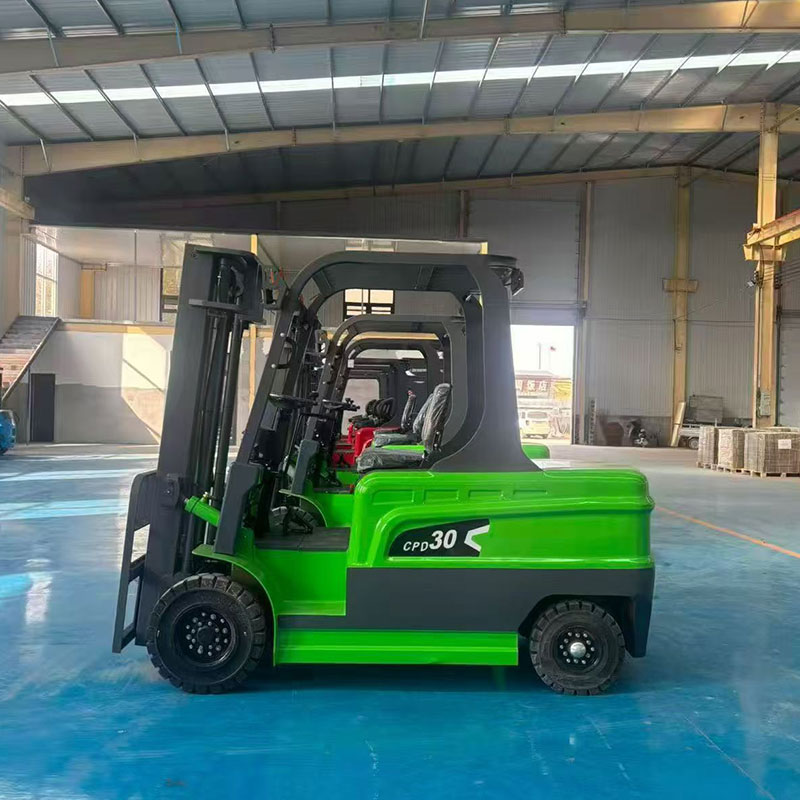

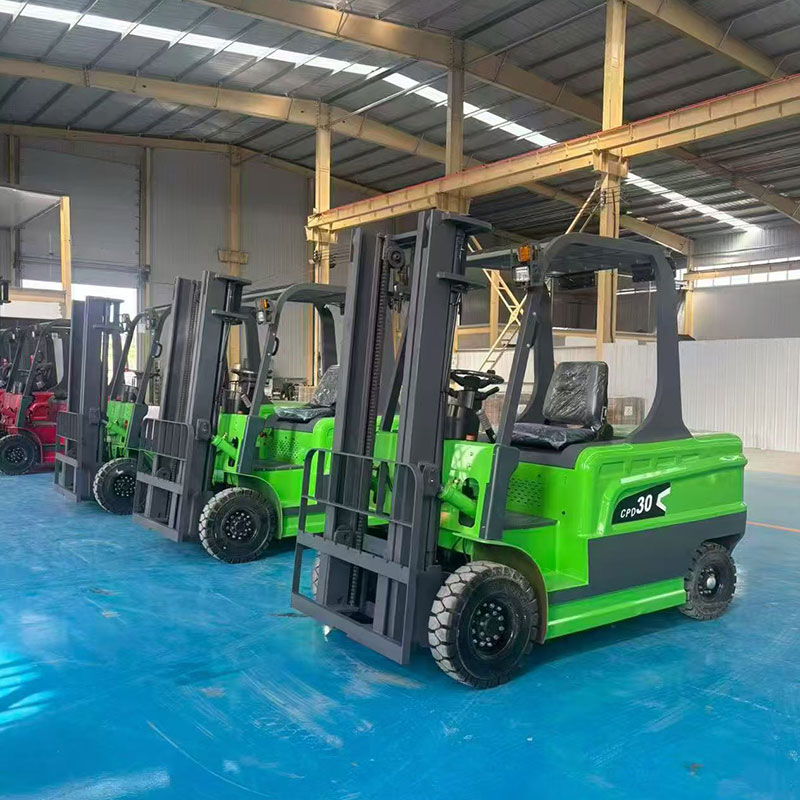

3 Ton Electric Forklift

Overview:

The CPD30 3.0 Ton Electric Forklift is a powerhouse designed to replace traditional internal combustion forklifts. With zero emissions and low noise, it is environmentally friendly without sacrificing power. It features a high-frequency MOSFET integrated controller that ensures precise control over driving and lifting. The intelligent hardware, including the advanced BMS, keeps the battery online and under control, maximizing lifespan and safety. Whether handling heavy pallets or operating in complex industrial environments, the CPD30 delivers the "Strong" mode power you need with the economy of electric drive.

Features:

• Smart & Connected: The BMS supports 4G wireless communication for remote monitoring and data acquisition.

• Enhanced Stability: Designed with a low center of gravity for excellent turning stability and high-position residual load capacity.

• Safety First: Includes an emergency power-off switch connected via CAN bus and an operator presence system that cuts off descending functions when the driver leaves the seat.

• Comfortable Cabin: The small-diameter steering wheel and spacious legroom reduce operator strain, while the LED screen keeps vital info in clear view.

Specification:

Model	CPD30
Rated Capacity (Q)	3000 kg
Load Center (C)	500 mm
Max. Lifting Height (h3)	3000 mm (Standard)
Turning Radius (Wa)	2480 mm
Vehicle Weight	4200 kg
Drive Motor Power	10 KW
Lifting Motor Power	12 KW
Battery	80V / 300Ah
