2 ton Electric Forklift

Overview:

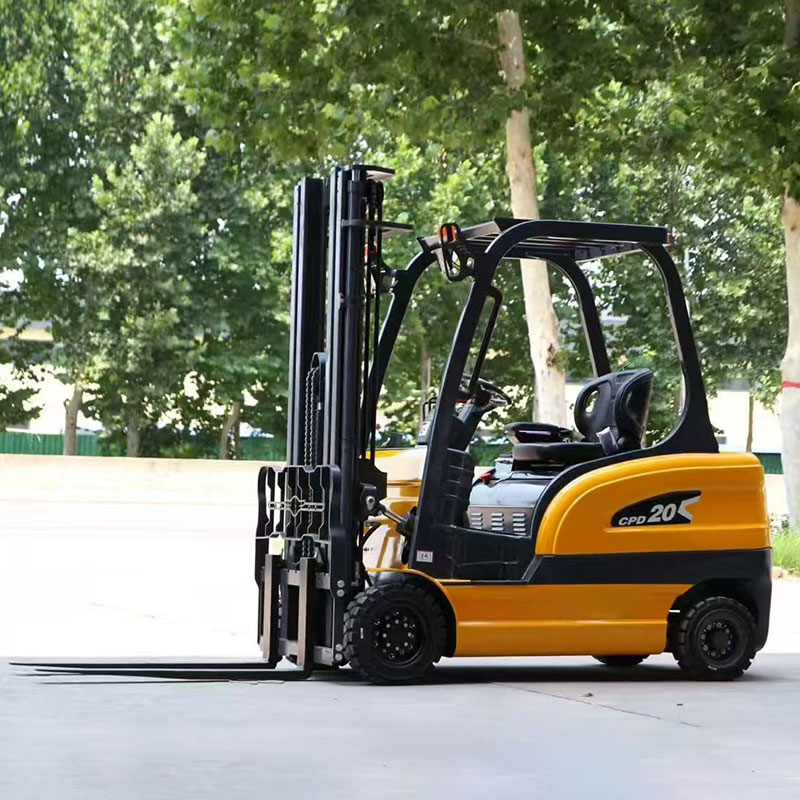

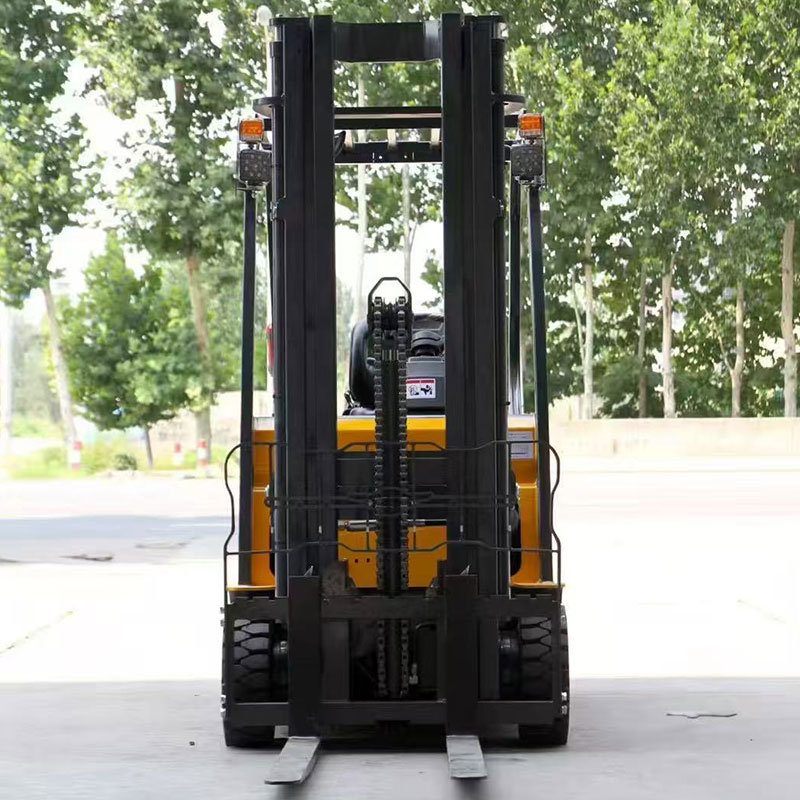

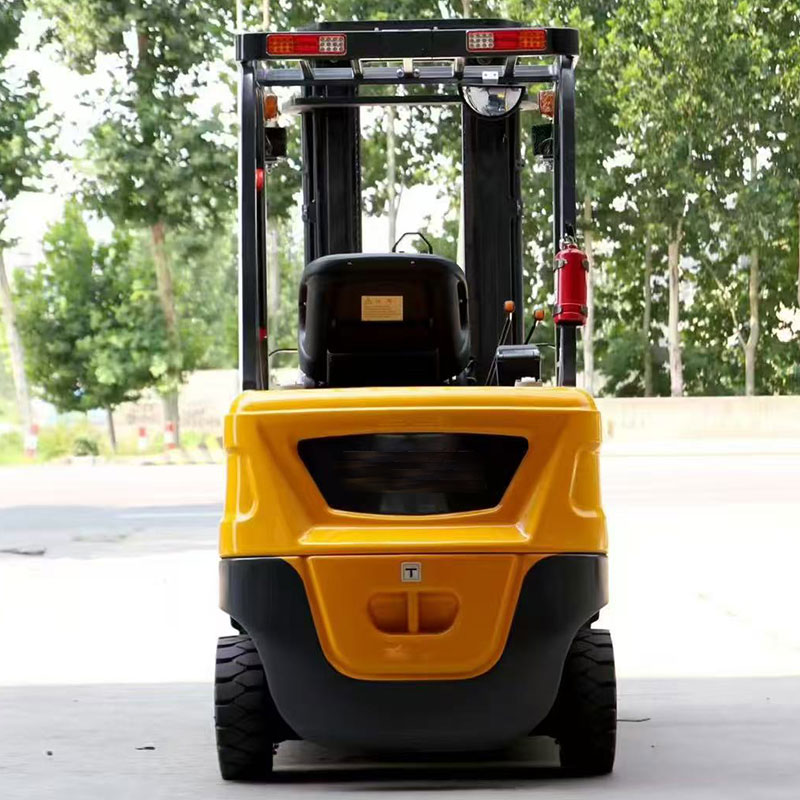

The Kinocranes CPD20 Electric Forklift is a versatile 2.0-ton machine designed for high-efficiency logistics. It balances power and agility, making it the "go-to" choice for general warehousing, manufacturing plants, and distribution centers. With a stronger chassis and higher battery capacity options compared to lighter models, the CPD20 ensures consistent power delivery for heavier loads. The vehicle features a hydraulic mechanical braking system and a low center of gravity, providing exceptional stability when lifting loads to heights of 3 meters or more. Whether utilizing lead-acid or advanced lithium battery technology, the CPD20 delivers reliable, zero-emission performance.

Features:

• Powerful Performance: The 5.0 KW drive motor and 5.0 KW lifting motor provide ample power for fast lifting and travel.

• Driver Safety: Integrated seat belts and a rigid overhead guard protect the operator, while the safety valve in the cylinder prevents hydraulic failures.

• Smart Braking: Parking electromagnetic brake realizes automatic parking functions on slopes for enhanced safety.

• Efficient Operations: Solid tires and a tight turning radius (1793mm) allow for efficient maneuvering in standard warehouse aisles.

Specification:

Parameter	Data
Model	CPD20
Rated Capacity (Q)	2000 kg
Load Center (C)	500 mm
Max. Lifting Height (h3)	3000 mm (Standard)
Turning Radius (Wa)	1793 mm
Vehicle Weight	2900 kg
Travel Speed (Full/Unladen)	9 / 11 km/h
Battery	48V / 300Ah or 350Ah
