Power Type: Electric(AC Drive)
Load Capacity: 1500kg (3,300 Ibs) -2000kg (5,500 lbs)
Load Center: 500 mm
Operator Type: Seated
Wheels: 3-Wheel Cushion/Non-Marking(Optional)
Mast Type: 2-Stage/3-Stage Full Free Lift(Optional)
Max.Lift Height: 3000 mm(Standard)to 5500 mm(Optional)
Application: High-Density Warehousing, Container &Trailer Loading/Unloading, Retail &Supermarket Backrooms

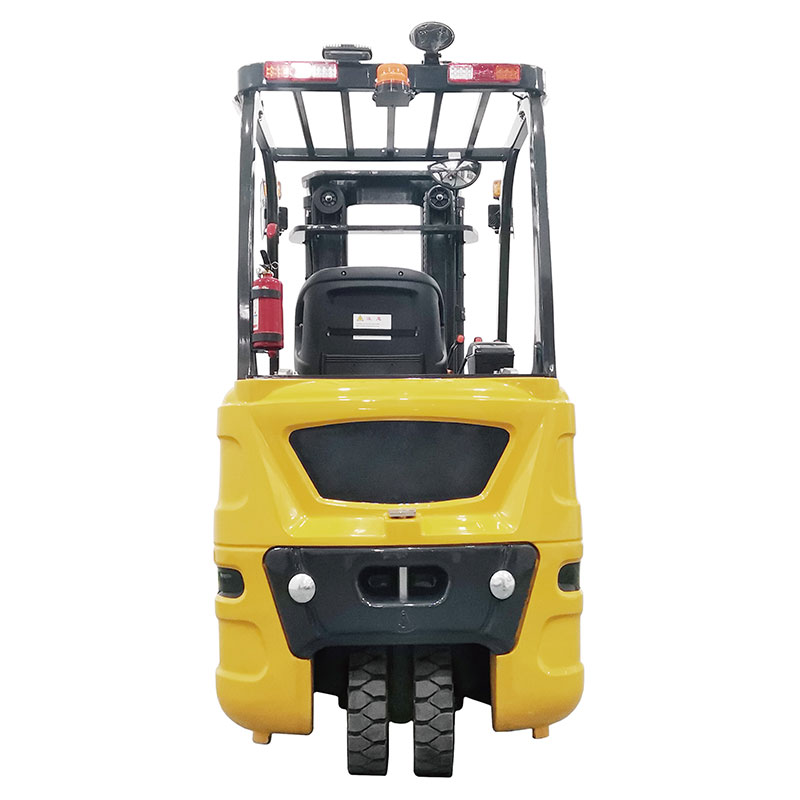

The KCCL 3 wheel electric forklift is a compact, engineered for exceptional maneuverability in confined spaces. Ideal for high-density warehouses, retail backrooms, and container stuffing/unstuffing, its key advantage is a zero-turn radius dual-drive front axle, allowing it to pivot within its own footprint. Powered by a high-efficiency AC system, the 3 wheel electric forklift delivers precise control, extended runtimes, and low maintenance costs, making it the premier choice for operations looking to maximize productivity in the tightest.
3-Wheel Chassis with Dual Front AC Drive Motors: Provides a zero turning radius for unparaileled agility and the ability to operate in extremely narrow aisles.
Compact Dimensions (Overall Width <1100mm): Designed to navigate congested areas, tight corners, and doorways inaccessible to larger forklifts.
Curtis AC Controller: Delivers smooth, responsive acceleration and precise hydraulic control, enhancing operator confidence and load safety.
Regenerative Braking System: Recaptures energy during braking and deceleration, feeding it back to the battery to extend shift life.
Maximum Space Utilization: Its ability to pivot in place allows for narrower aisle configurations, potentially increasing warehouse storage capacity by over 20%.
Enhanced Energy Efficiency: The dual AC drive motors and regenerative braking result in lower energy consumption per hour, extending battery life and reducing charging costs.
Precision Control in Congested Areas: The responsive controller and compact design give operators the finesse needed for delicate loading tasks inside trailers or around machinery.
Reduced Operator Fatigue: Fingertip hydraulic controls and a low-effort steering system minimize physical strain during complex, repetitive maneuvers
| Model | 3 Wheel Forklift |
| Power Type | Electric(AC Drive) |
| Load Capacity | 1200kg-2000kg (3,300lbs-5500lbs) |
| Load Center | 500mm |
| Operator Type | Seated |
| Wheels | 3-Wheel Cushion/Non-Marking(Optional) |
| Mast Type | 2-Stage/3-Stage Full Free Lift(Optional) |
| Max.Lift Height | 3000mm(Standard)to 5500mm(Optional) |
| Travel Speed(L/U) | 7/8 km/h |
| Battery Voltage/Cap | 48V/300Ah (Lead-Acid), 48V/271Ah(Lithium) |
| Turning Radius | 1590mm-1793mm |
| Weight | 1900kg-2900kg(with standard battery) |
