Max. Working height:10m-21m
Max. Platform height:8m-19m
Lift capacity:200kg
Platform occupancy:2
Driving speed:1.5km/h
Max. Working height:10m-21m
Max. Platform height:8m-19m
Lift capacity:200kg
Platform occupancy:2
Driving speed:1.5km/h

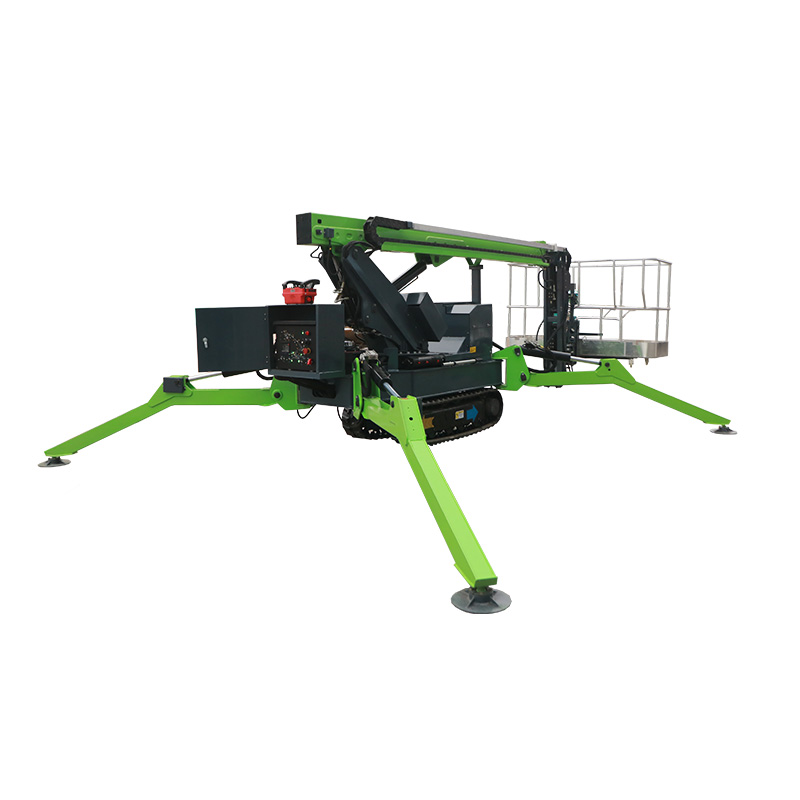

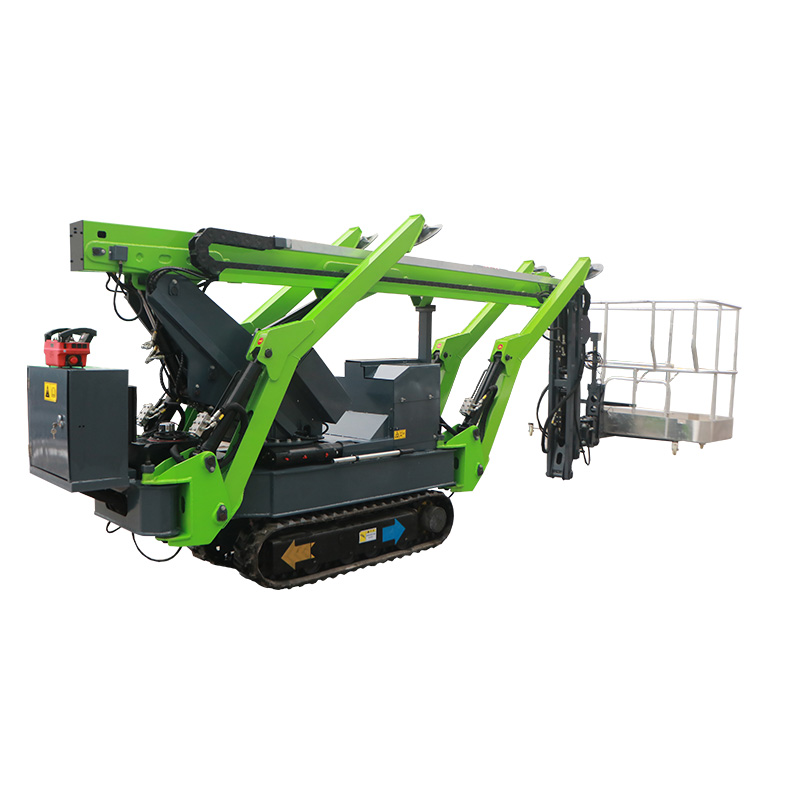

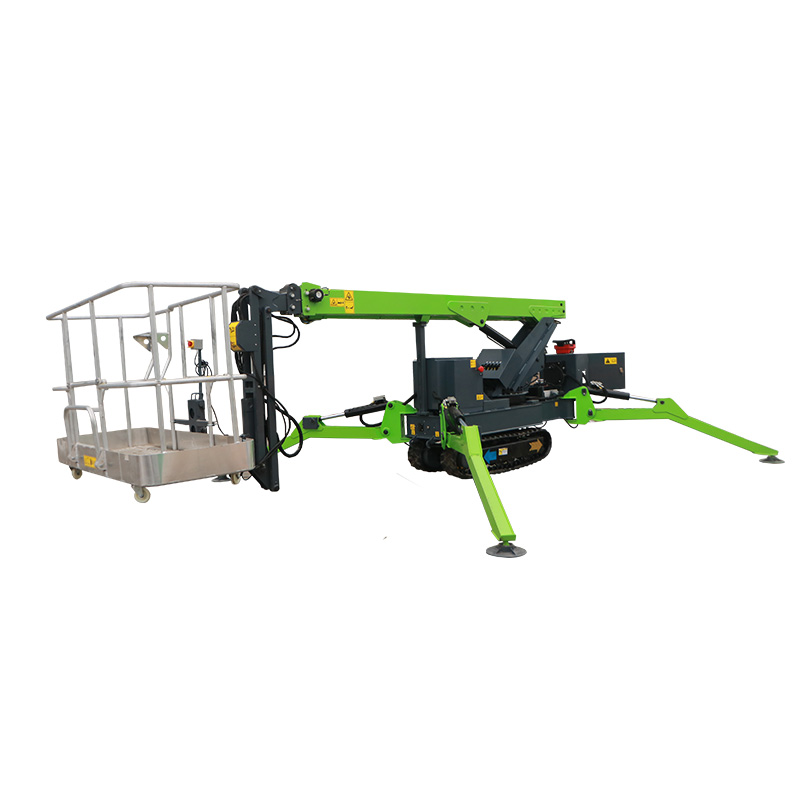

Spider Boom Lift(also known as tracked spider lifts) are a new type of aerial work platform capable of efficient operation in a vari
ety of complex environments. Equipped with robust rubber tracks and flexible four-legged supports, these lifts can reach w
ork environments inaccessible to other products while maintaining stability and safety. Manufactured at KCCL Lift, a facility
renowned for its high quality, safety, economy, and environmental friendliness, spider lifts utilize tracks instead of traditio
nal wheels, easily navigating rugged, sloping, and other challenging terrains, making them a top choice for construction si
tes, tree maintenance, and other demanding work environments.
For businesses and contractors seeking top-of-the-line equipment, KCCL Lift's spider lifts offer a superior and reliable soluti
on, backed by excellent service and certified quality.
Key Features of Spider-Arm Lifts:
Excellent Mobility: Equipped with rubber tracks, this product can operate in various rugged and complex environments.
Compact and Flexible: It can easily maneuver in various narrow spaces and is convenient for storage.
Working Range and Load Capacity: It maintains a high level of operation under heavy loads, reaching desired heights.
Superior Performance: Four highly auxiliary outriggers provide strong ground support, maintaining stability and safety.
Multi-functional Design: Tracked spider-arm lifts are suitable for multi-point work, rotating and precisely performing area work.
Flexible Transport and Transportation: Its compact and lightweight structure allows it to operate at various work locations, saving time and costs.
Model | S08C | S10C | S12C | S14C | S16C | S18C | S19C |
Measurements | |||||||
Max. Working height | 10m | 12m | 14m | 16m | 18m | 20 | 21m |
Max. Platform height | 8m | 10m | 12m | 14m | 16m | 18 | 19m |
Max. Operating radius | 5m | 5.5m | 6.2m | 6.2m | 7.1m | 8.2 m | 8.5m |
Platform dimensions | 0.9×0.7×1.1m | 0.9×0.7×1.1m | 0.9×0.7×1.1m | 1.2×0.7×1.1m | 1.2×0.7×1.1m | 1.2×0.7×1.1m | 1.2×0.7×1.1m |
Length(stowed) | 4.9m | 4.6m | 5.2m | 5.2m | 5.3m | 5.5m | 5.35m |
Width(stowed) | 0.75m | 0.75m | 0.75m | 0.95m | 0.95m | 0.95m | 0.95m |
Height(stowed) | 1.9m | 1.9m | 1.9m | 2.1m | 2.1m | 2.1m | 2.1m |
rotation | ±70° | ±70° | ±70° | ±70° | ±70° | ±70° | ±70° |
Platform rotation | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
Turntable rotation | 360°non continuous | 360°non continuous | 360°non continuous | 360°non continuous | 360°non continuous | 360°non continuous | 360°non continuous |
Weight | 1720kg | 1790kg | 1880 kg | 1900kg | 2200kg | 2520kg | 2750kg |
(Productivity) | |||||||
Lift capacity | 200kg | 200kg | 200kg | 200kg | 200kg | 200kg | 200kg |
Platform occupancy | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Driving speed | 1.5km/h | 1.5km/h | 1.5km/h | 1.5km/h | 1.5km/h | 1.5km/h | 1.5km/h |
Max. Working angle | 10° | 10° | 10° | 10° | 10° | 10° | 10° |
Power | |||||||
electric motor | 48V/4.5kw | 48V/4.5kw | 48V/6kw | 48V/6kw | 48V/7.5kw | 48V/7.5kw | 48V/8kw |
LFP battery | 48V/230Ah | 48V/230Ah | 448V/230Ah | 48V/300Ah | 48V/300Ah | 48V/300Ah | 48V/300Ah |
Control voltage | 12V | 12V | 12V | 12V | 12V | 12V | 12V |
