Towable Boom Lifts

Overview:

Towable boom Lifts are commonly used aerial work tools, suitable for various industries including construction,

agriculture, and facility maintenance. Manufactured by leading manufacturers such as KCCL, these platforms offer high-qu

ality working range and maneuverability, enabling workers to perform both vertical and horizontal operations flexibly. The

se platforms are designed to safely transport workers to heights up to 18 meters, with specific platform load capacities cus

tomizable.

KCCL is a trusted supplier of towable aerial work platforms. KCCL ensures its products meet stringent quality standards and

 possess relevant certifications, guaranteeing safety, reliability, and efficiency. These platforms are powered by advanced,

environmentally friendly battery systems, ensuring zero emissions and low noise, making them ideal for both indoor and o

utdoor environments.

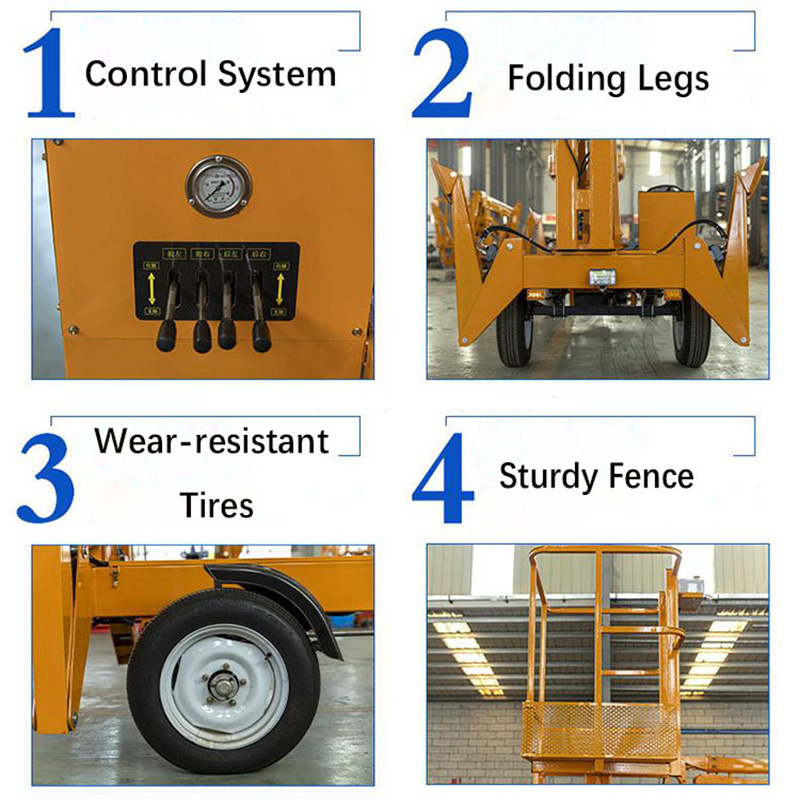

Features:

Features of Towable Boom Lift :

1.Towable lifts are battery-powered, environmentally friendly, zero-emission, low-noise, and can operate cyclically.

2.Equipped with an automatic leveling system, they can operate smoothly and safely on rough terrain.

3.Variations on gasoline power and generators ensure powerful performance during operation.

4.The remote control system allows operators to precisely position the aerial work platform to achieve the desired results.

5.Its compact structure allows for easy movement, enabling operation in confined spaces and stable operation on uneven surfaces.

Specification:

Model	T10Li	T12Li	T14Li	T16Li
Max. Working Height	12m	14m	15.8m	17.85m
Max. Platform Height	10m	12m	13.8m	15.85m
Max. Operating Radius	4.5m	5.9m	6.5m	7.0m
Length- Stowed	4.8m	5.3m	5.2m	5.5m
Width-Stowed	1.4m	1.4m	1.6m	1.6m
Height-Stowed	1.9m	1.9m	2.0m	2.05m
Length- Storage	3.8m	4.3m	4.2m	4.4m
Footprint Length	3.8m	3.8m	4.2m	4.2m
Footprint Width	3.8m	3.8m	4.0m	4.0m
Ground clearance(center)	0.35m
Weight	1350kg	1740kg	1980kg	2170kg
Lift Capacity	200kg
Platform Occupancy	2
Platform Rotation	/	±80°
Jib Rotation	/	±70°
Turntable Rotation	355°
Drive Speed- Stowed	70km/h
Gradeability	0.45
Max. Working Angle	3°
LFP Battery	24V/250Ah
Pump Motor Power	4.5kw
Control Voltage	12V
Power Plus Generator	2kw
Insulated Platform	500KV
