Project Overview
- Project Name: Australia 10m Self-Propelled Scissor Lift Project
- Industry: Construction
- Location: Australia Completion
- Customer Type: Trading Company
- Application: Construction Work at Height
Customer Challenge
An Australian trading company required a high-quality, certified 10m self-propelled scissor lift for the construction industry. The customer had strict requirements:
- Australian Standards Compliance: Must meet AS/NZS 1418.10 – 2025 and EN 280-1 – 2022 standards
- Work Safe Design Registration: Equipment must be certified by design verifier
- Cost-Effective Solution: Competitive pricing without compromising safety or quality
- Reliable Performance: Dependable operation for demanding construction environments
The customer needed a supplier who could provide certified equipment at a competitive price point while ensuring full compliance with Australian regulations.
Our Solution

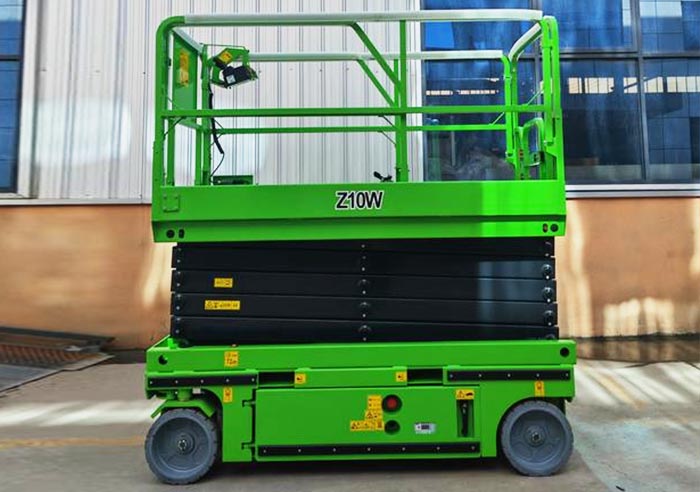

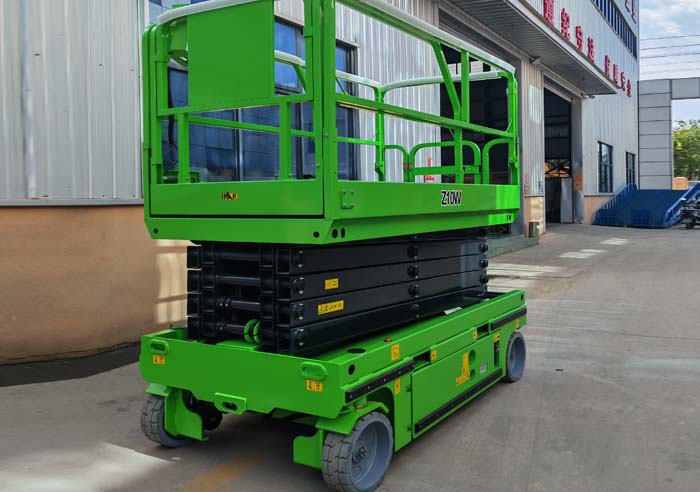

Kinocranes delivered a certified 10m self-propelled scissor lift (Model Z10W) that met all Australian standards while offering exceptional value:
Certification & Compliance:
✅ AS/NZS 1418.10 – 2025 Compliant: Fully certified for “Cranes, hoists and winches, Part 10: Mobile elevating work platforms”
✅ EN 280-1 – 2022 Compliant: Meets European standards for “Mobile elevating work platforms – Design calculations – Stability criteria – Construction – Safety – Examinations and tests”
✅ Work Safe Design Registered: Confirmed by design verifier for Australian workplace safety requirements
Enhanced Standard Configuration:
1. Additional 1-to-2 Height Limit Bar:
- Enhanced safety with dual height limiting system
- Prevents over-extension beyond safe working height
- Redundant safety system for operator protection
2. Overload Alarm System:
- Real-time load monitoring
- Audio and visual warnings when approaching capacity limits
- Prevents unsafe operation with excessive loads
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Z10W Self-Propelled Scissor Lift |
| Max. Working Height | 11.8m |
| Platform Height | 9.8m |
| Max. Lift Capacity | 320kg |
| Max. Platform Occupancy | 2 persons |
| Gradeability (stowed) | 25% |
| Platform Dimensions | 2.27×1.15×0.78m (L×W×T) |
| Length (stowed) | 2.42m |
| Width (stowed) | 1.21m |
| Height (stowed) | 1.93m |
| Platform Extension Depth | 0.9m |
| Ground Clearance (stowed) | 0.1m |
| Ground Clearance (outriggers deployed) | 0.02m |
| Wheelbase | 1.87m |
| Machine Weight | 2559kg |
| Drive Speed (stowed) | 3.5km/h |
| Drive Speed (raised) | 0.8km/h |
| Max. Working Angle | 1.5° |
| Turning Radius (inside/outside) | 0.2/2m |
| Lifting Speed | 3-5.5m/min |
| Tires | Φ301×127mm solid non-marking |
| Battery | 24V/200Ah |
| Battery Charger | 24V/36A |
| Hydraulic Drive System | Danfoss |
| Control Systems | DTC (Digital Torque Control) |
| Valve System | SANT |
Premium Components for Reliability
Hydraulic System:
- Danfoss Hydraulic Drive: World-renowned Danish hydraulic components for smooth, reliable operation
- SANT Valve System: Premium Chinese hydraulic valves for precise flow control
Control System:
- DTC (Digital Torque Control): Advanced digital control for smooth operation and optimal performance
Power System:
- 24V/200Ah Battery: Extended runtime for full-day operation
- 24V/36A Charger: Fast charging for minimal downtime
Pre-Shipment Testing & Certification
Every scissor lift undergoes comprehensive testing and certification before delivery:
Testing procedures included:

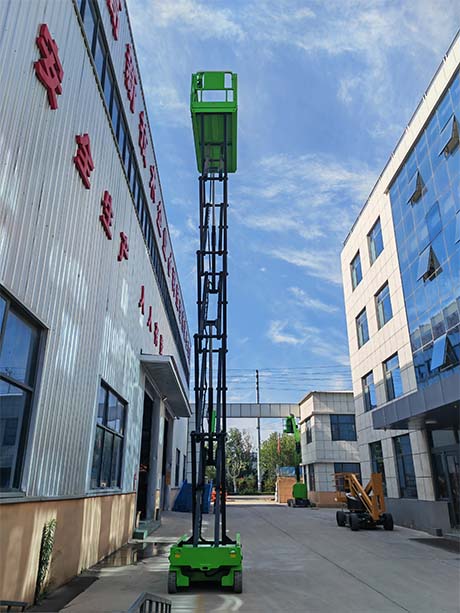

- Full load testing at 320kg capacity
- Stability testing per AS/NZS 1418.10 requirements
- Height limit system verification (1-to-2 system)
- Overload alarm system calibration
- Drive and steering system testing
- Hydraulic system performance verification
- Emergency lowering system testing
- Safety interlock system check
- Work Safe design verification
Construction Industry Applications
The Z10W scissor lift is ideal for various construction applications:
- Building Maintenance: Facade work, window installation, painting
- Electrical Work: Overhead lighting installation, wiring
- HVAC Installation: Ductwork, air conditioning units
- Facility Management: Regular maintenance, inspections
- Event Setup: Stage construction, lighting rigging
- Warehouse Operations: High-reach storage, inventory management
Why Kcclift for Australian Market?
Compliance Expertise:
✅ Standards Knowledge: Deep understanding of AS/NZS 1418.10 and EN 280 requirements
✅ Certification Ready: Work Safe design registration process handled efficiently
✅ Documentation: Complete compliance documentation for import and workplace approval
Cost-Effective Solutions:
✅ Competitive Pricing: High-quality equipment at reasonable prices
✅ Value-Added Features: Enhanced safety systems included as standard
✅ Direct Supply: Factory-direct pricing eliminates middleman costs
Technical Support:
✅ Application Expertise: Guidance on selecting the right equipment for specific applications
✅ After-Sales Service: Ongoing support for maintenance and technical questions
✅ Spare Parts Availability: Ready stock of replacement components
Related Products
- Scissor Lifts – Complete range of mobile elevating work platforms
- Self-Propelled Lifts – Motorized MEWPs for various applications
- Cherry Pickers – Boom lifts for elevated work
Australian Market Expertise
Kcclift has extensive experience serving the Australian market:
- Regulatory Compliance: Expert knowledge of Australian safety standards
- Import Documentation: Complete paperwork for smooth customs clearance
- Voltage Compatibility: Equipment configured for Australian power systems
- Metric System: All measurements and specifications in metric units
- Local Support: Network of service partners across Australia
Client Testimonial
“Kcclift delivered exactly what we needed – a fully certified 10m scissor lift that meets all Australian standards at a competitive price. The enhanced safety features like the 1-to-2 height limit bar and overload alarm give our operators confidence. The Work Safe design registration process was handled professionally, and the pre-shipment testing report was comprehensive. We’re very satisfied with both the product quality and the service.” – Australian Trading Company
Key Benefits for Australian Customers:
- Full Compliance: AS/NZS 1418.10 and EN 280 certified
- Work Safe Registered: Design verifier approved
- Enhanced Safety: Additional safety features as standard
- Premium Components: Danfoss hydraulics, DTC controls
- Competitive Pricing: Best value for certified equipment
- Expert Support: Australian market specialists
Why Choose Kcclift?
Kcclift is a leading supplier of certified material handling and access equipment:
- Quality Assured: Rigorous testing and certification processes
- Competitive Pricing: Direct factory pricing without middlemen
- Technical Expertise: Deep knowledge of international standards
- Customer Focus: Committed to your success and safety
- Global Experience: Serving customers in Australia and worldwide
Need certified equipment for Australia? Contact our Australian market specialists!
