Customer Challenge

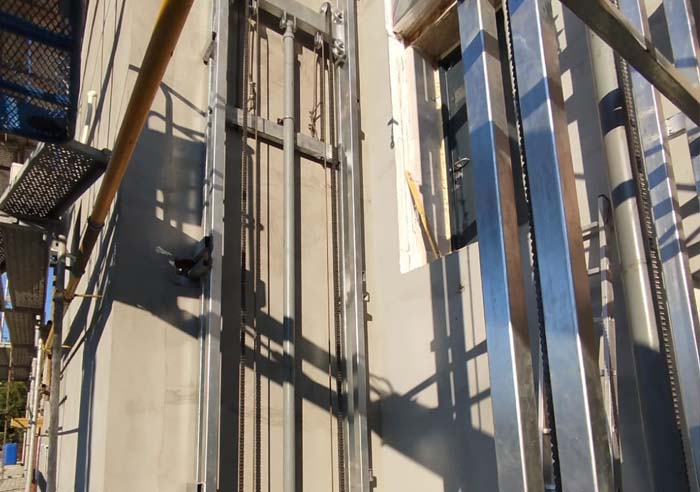

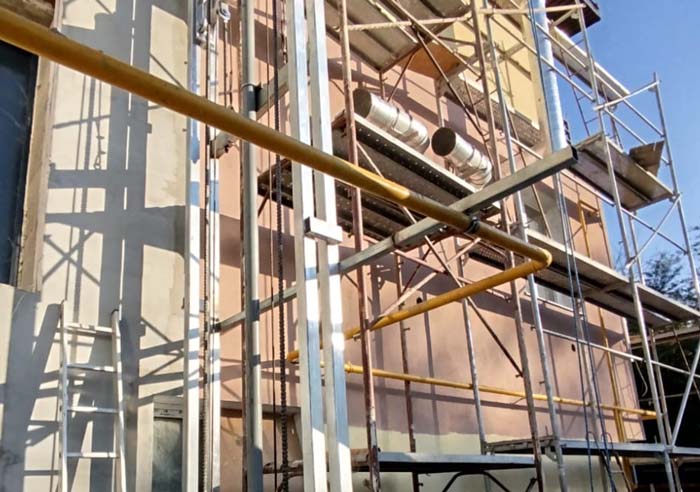

A construction project in Moldova required a customized hydraulic cargo lift platform for transporting materials between floors. The customer had specific requirements:
- Customized Specifications: Non-standard dimensions and features tailored to project needs
- Galvanized Construction: Corrosion-resistant materials for durability
- Stainless Steel Doors: High-quality door systems for both floors
- High Drawing Accuracy: Precise dimensional requirements for perfect fit
- Installation Guidance: Technical support for on-site assembly
The customer needed a supplier capable of delivering a fully customized solution with precise engineering and comprehensive technical support.
Our Solution
Kinocranes provided a bespoke XT-SJD1-6.25 double guide rail elevating platform with customized features:
Core Specifications:
| Parameter | Specification |
|---|---|
| Model | XT-SJD1-6.25 Double Guide Rail Elevating Platform |
| Capacity | 1000kg |
| Lifting Form | Heavy-duty direct-push type |
| Lifting Height | 6.25m |
| Table Size | 1800×1700mm |
| Overall Dimension | 2400×1800mm |
| Power Supply | 380V/3KW |
| Lifting Speed | 4-6m/min |
| Railing Height | 1000mm |
| Synchronous Rope | Diameter 12mm |
| Chain | Plate Chain 1234 |
Customized Features:
✅ Galvanized Guide Rails: 70×70×3.75mm square tube (galvanized) for corrosion resistance
✅ Galvanized Platform: 120×53×3.75mm U-shaped steel plate + 3mm steel plate (galvanized)
✅ Galvanized Boom: 80×80×4mm rectangular tube (galvanized)
✅ Galvanized Rollers: Forged steel rollers with galvanized treatment

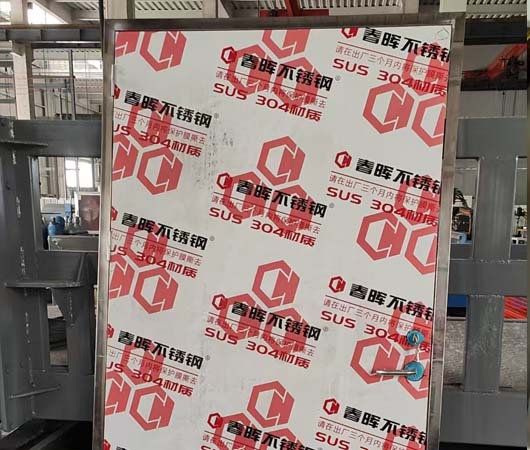

✅ Stainless Steel Doors: 1100×2100mm 304 stainless steel, manual single door, two doors per floor
✅ Custom Dimensions: Tailored to fit exact project requirements
Premium Components & Safety Features
Main Configuration:
1. Hydraulic System:
- Oil Cylinder: Φ70-50×2 cylinders from Hebei Yutai Group (Premium Chinese Manufacturer)
- Motor Station: Jinan Ketai power unit [integrated machine, 380V/2KW]
- Hydraulic Hose: Φ22mm double-layer steel braided hose (Shenyang No.4 Rubber Factory)
- Recommended Hydraulic Oil: No.46 anti-wear hydraulic oil (supplied by buyer)
2. Electrical System:

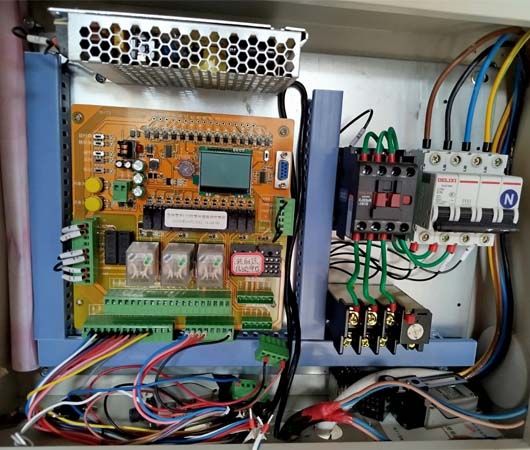

- Control Cabinet: Delixi PLC control system with safety voltage
- Control Method: Digital switch, three stops and three stations
- Safety Features: Power system overheat protection device
- Work Warning Light: Included for operational safety
Advanced Safety Features:
✅ 36V Safety Voltage Control: Enhanced operator safety with low-voltage control system
✅ Automatic Leveling: Platform automatically stops at designated floor with table flush to ground
✅ Multi-Point Control: Control buttons installed on each floor for convenient operation
✅ Line Protection: Special explosion-proof circuit with anti-leakage and anti-short circuit protection
✅ Overload Protection: Force-limiting system stops equipment when overloaded
✅ Flow Regulating Valve: Prevents platform descent if oil circuit is blocked
✅ Emergency Manual Valve: Enables platform to descend to nearest floor during power failure
Customization Process
Kcclifts provided comprehensive customization services:
1. Requirements Analysis:
- Detailed consultation to understand project needs
- Site constraint analysis and dimension verification
- Material specification selection (galvanized vs. standard)
2. Design & Engineering:
- Custom CAD drawings prepared
- Multiple revisions to meet customer expectations
- Precise dimension matching for on-site installation
3. Production & Quality Control:
- Galvanization process for all exposed steel components
- Stainless steel door fabrication to exact specifications
- Assembly and testing of complete system
4. Documentation & Support:
- Detailed technical drawings for local production reference
- Installation manual with step-by-step guidance
- On-site installation guidance and technical support
Pre-Shipment Testing
Every cargo lift undergoes rigorous testing before delivery to ensure safety and reliability:
Testing procedures included:
- Full load testing at 1000kg capacity
- Automatic leveling system verification
- Emergency descent system testing
- Overload protection system calibration
- Safety interlock system check
- PLC control system functionality test
- Multi-floor control operation verification
- Hydraulic system pressure and leak testing
- Door operation and safety testing
Construction Site Applications
The XT-SJD1-6.25 cargo lift is ideal for construction projects:
- Material Transportation: Move bricks, cement, steel, and other building materials
- Equipment Transport: Transfer tools and machinery between floors
- Worker Access: Safe vertical transportation for construction personnel
- Waste Removal: Efficient debris removal during construction
- Flexible Installation: Suitable for both indoor and outdoor applications
Galvanized & Stainless Steel Advantages
Why Galvanized Construction?
✅ Corrosion Resistance: Extended service life in harsh environments
✅ Low Maintenance: Reduced upkeep requirements compared to painted steel
✅ Cost-Effective: Better long-term value despite higher initial cost
✅ Aesthetic Appeal: Consistent appearance throughout service life
✅ Weather Resistance: Suitable for outdoor and exposed applications
Why Stainless Steel Doors?
✅ Hygienic: Easy to clean and sanitize
✅ Durable: Resistant to dents, scratches, and corrosion
✅ Professional Appearance: Modern, clean look
✅ Fire Resistant: Better fire performance than some alternatives
✅ Low Maintenance: Minimal upkeep required
Why Kcclift for Custom Projects?
Customization Expertise:
✅ Flexible Design: Adapt standard products to meet unique requirements
✅ Material Options: Galvanized, stainless steel, painted, or aluminum
✅ Dimension Precision: Exact matching to customer specifications
✅ Engineering Support: Professional design and drawing services
Quality Assurance:
✅ Premium Components: Delixi PLC, Jinan Ketai power units, Shenyang No.4 hoses
✅ Rigorous Testing: Full load and safety system testing before shipment
✅ Documentation: Complete technical manuals and installation guides
✅ After-Sales Support: Remote guidance and on-site installation assistance
Customer-Focused Approach:
✅ Transparent Quotation: Clear, detailed pricing for budget planning
✅ Drawing Revisions: Multiple iterations to ensure customer satisfaction
✅ Technical Consultation: Expert advice on optimal solutions
✅ Responsive Service: Quick answers to technical questions
Client Testimonial
“Kcclifts delivered exactly what our construction project needed – a fully customized cargo lift with galvanized construction and stainless steel doors. The team was incredibly patient, revising the drawings multiple times until we were completely satisfied with the design. The pre-shipment testing was thorough, and the installation guidance made on-site assembly straightforward. The quality of components, especially the Delixi PLC control system and galvanized materials, exceeded our expectations. Highly recommend Kinocranes for custom lift projects.” – Moldova Construction Project Manager
Key Benefits of Choosing Kcclifts:
- Full Customization: Tailored dimensions, materials, and features
- Premium Quality: Top-tier components from trusted manufacturers
- Comprehensive Safety: Multiple protection systems for operator safety
- Technical Support: Drawing services, installation guidance, and after-sales service
- Transparent Pricing: Clear quotations with no hidden costs
- Proven Reliability: Rigorous testing ensures long-term performance
Typical Applications for Custom Cargo Lifts:
- Construction Sites: Material and equipment transportation
- Industrial Facilities: Warehouse and production floor logistics
- Commercial Buildings: Goods delivery and waste management
- Residential Complexes: Furniture and appliance moving
- Retail Stores: Inventory management and stock transfer
