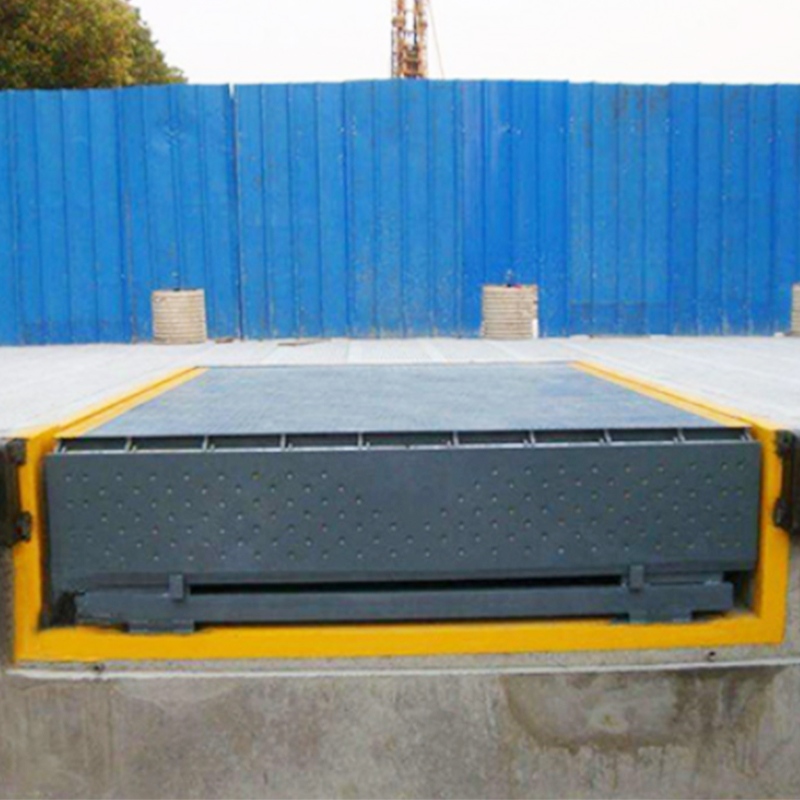

Hydraulic Dock Leveler

Overview:

A Hydraulic Dock Leveler from KCCL Lift is an essential, high-performance loading dock equipment designed to create a safe and efficient bridge between your warehouse or distribution center and transportation vehicles, seamlessly handling height variations for rapid bulk loading and unloading with forklifts . As a leading manufacturer, KCCL Lift ensures robust construction using high-grade steel, featuring an anti-slip checkered steel platform (typically 8mm thick) and a high-strength lip plate (often 16mm thick) for superior durability and safety . Our levelers are powered by a reliable, full hydraulic drive system. With key certificates such as CE, ISO9001, and compliance with European EN1398 safety standards, we affirm our commitment to quality and safety, which is further enhanced by features like automatic retractable guards and anti-slip surfaces . KCCL Lift offers exceptional value, making it the preferred supplier for industries ranging from logistics and e-commerce to cold storage facilities .

Features:

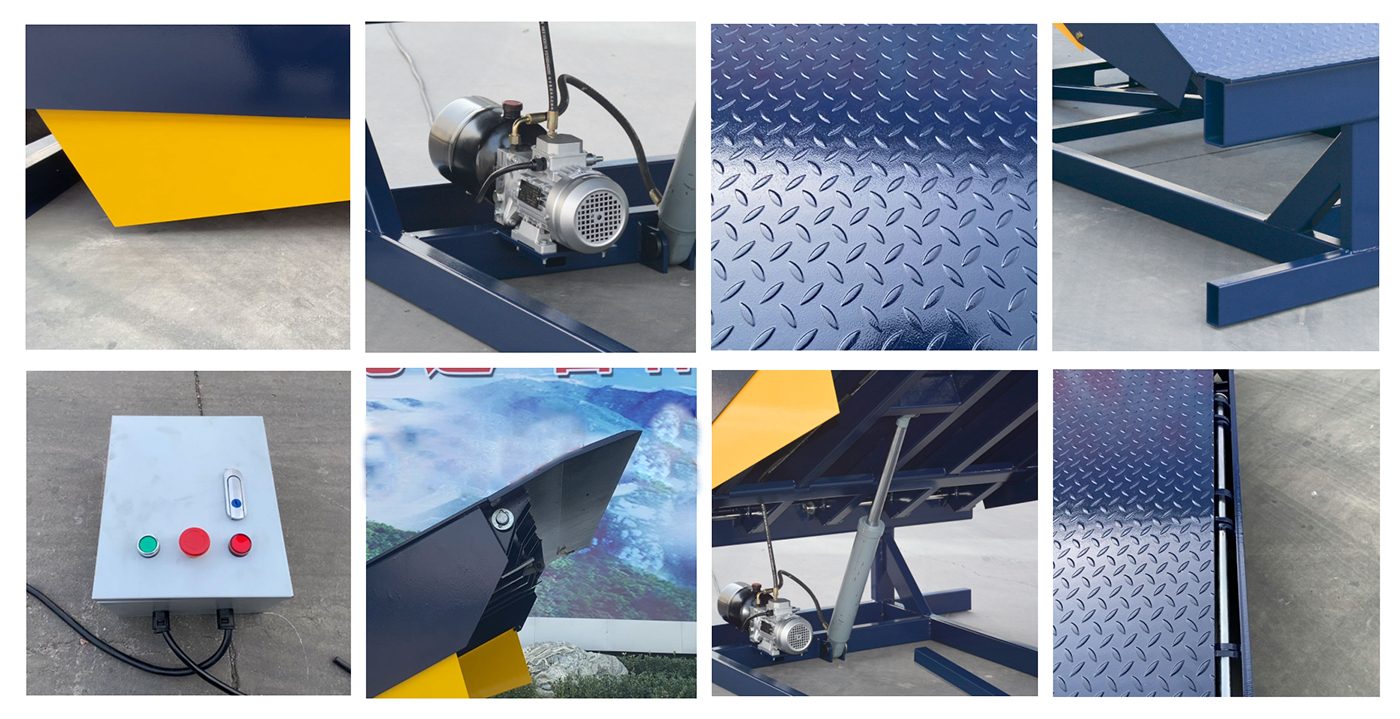

1. Efficient and stable drive

The system is fully hydraulic-driven and equipped with imported hydraulic seals. It operates smoothly, has excellent sealing performance, is easy to maintain, and has a long service life.

2. Robust and durable structure

The lip plates and the platform are connected by an entire-length shaft, combined with high-strength "U" shape beams or manganese steel structures, ensuring that the platform does not deform under high loads for a long time, and is reliable and durable.

3. Comprehensive safety protection

The countertop is made of anti-slip patterned steel plate; both sides are equipped with anti-rust foot skirt plates, and are accompanied by safety support rods, effectively preventing accidental injuries and ensuring the safety of operation and maintenance.

4. Efficient loading and unloading operations

It can be quickly adjusted in height, and builds a bridge between the cargo platform and the truck, allowing forklifts to directly enter the truck bed, achieving batch loading and unloading, which can be operated by a single person, significantly improving logistics efficiency.

Standard configuration

• Non-slip checkered board table

• Anti puncture skirt

• high power motor

• Sealed hydraulic cylinder

• Self-adjusting device height

• Full hydraulic drive

Specification:

Model	KNDCQG6-0.6	KNDCQG8-0.6	KNDCQG10-0.6	KNDCQG12-0.6
Max.Loading Capacity	6 Ton	8 Ton	10 Ton	12 Ton
Overall Size(Lenght)	2m	2m	2m	2m
Overall Size(Width)	2.5m	2.5m	2.5m	2.5m
Tongue Width	0.4m	0.4m	0.4m	0.4m
Incline Travel	0.3m	0.3m	0.3m	0.3m
Downstroke	0.3m	0.3m	0.3m	0.3m
Pit Size	2.08x2.54x0.6m	2.08x2.54x0.6m	2.08x2.54x0.6m	2.08x2.54x0.6m
Motor Power	0.75kw	0.75kw	0.75kw	0.75kw

How to choose between fixed and mobile types?

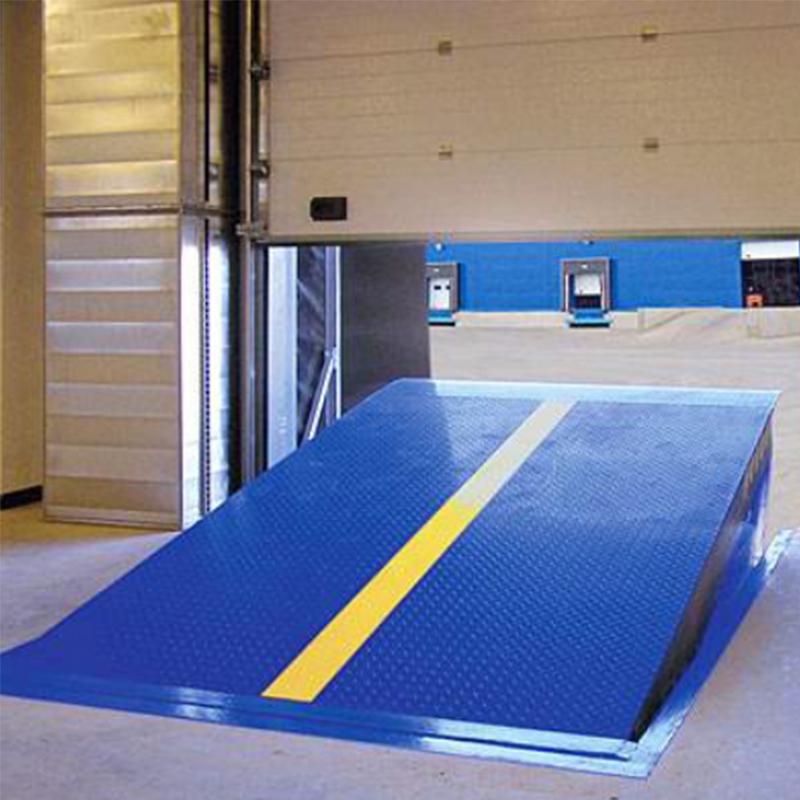

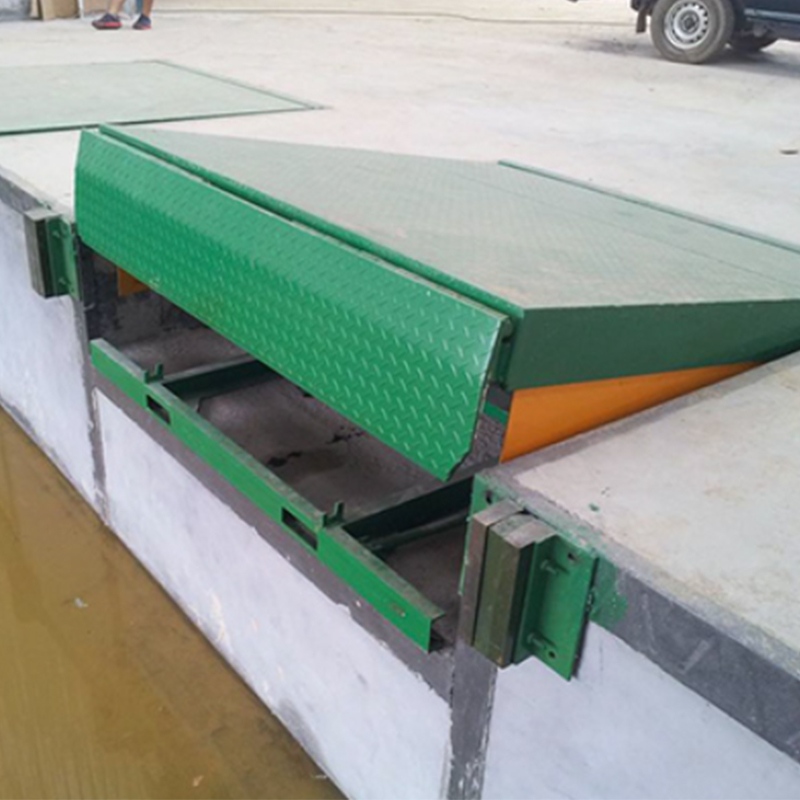

Fixed hydraulic dock leveler installed on a fixed cargo platform and integrated with the platform as a whole,Applicable to fixed scenarios.Mobile hydraulic dock leveler can be flexibly moved and is suitable for scenarios without fixed loading and unloading equipment or where mobile operations are required.

In conclusion, the hydraulic dock leveler is a reliable equipment that can enhance loading and unloading efficiency and reduce costs.
