Mobile Yard Ramp

Overview:

The KCCL Lift Mobile Yard Ramp is an essential piece of material handling equipment designed to create a flexible and efficient loading dock anywhere it's needed. As a leading manufacturer of mobile yard ramps, KCCL Lift provides these ramps as transportation channels for vehicle loading and unloading. They enable vehicles and containers to be directly loaded and unloaded like a bridge from the ground to the container or vice versa, maintaining a horizontal position from the container back to the ground. These ramps have been meticulously designed by us. The mobile yard ramps can be adjusted in height and are made entirely of high-strength steel, ensuring excellent durability. The surface of the mobile yard ramps is equipped with anti-slip grids to ensure the safety of operators during vehicle climbing and descending, so there is no need to worry about rain or snow weather during loading and unloading.

Key considerations when selecting a ramp from a supplier include the rated load capacity, which ranges from light-duty 6 Ton models to industry-standard 10 ton and heavy-duty 12 Ton variants, ensuring it exceeds the maximum expected load .

Features:

The Mobile Yard Ramp has significant advantages in modern logistics and warehousing. Its core value lies in flexibility, efficiency improvement, and safety.

• Manual/electric lifting operation can be realized

• Reinforced steel. durable and safer

• The slope is longer and the cover is slower

• Bridge deck anti-skid treatment, safe and reliable

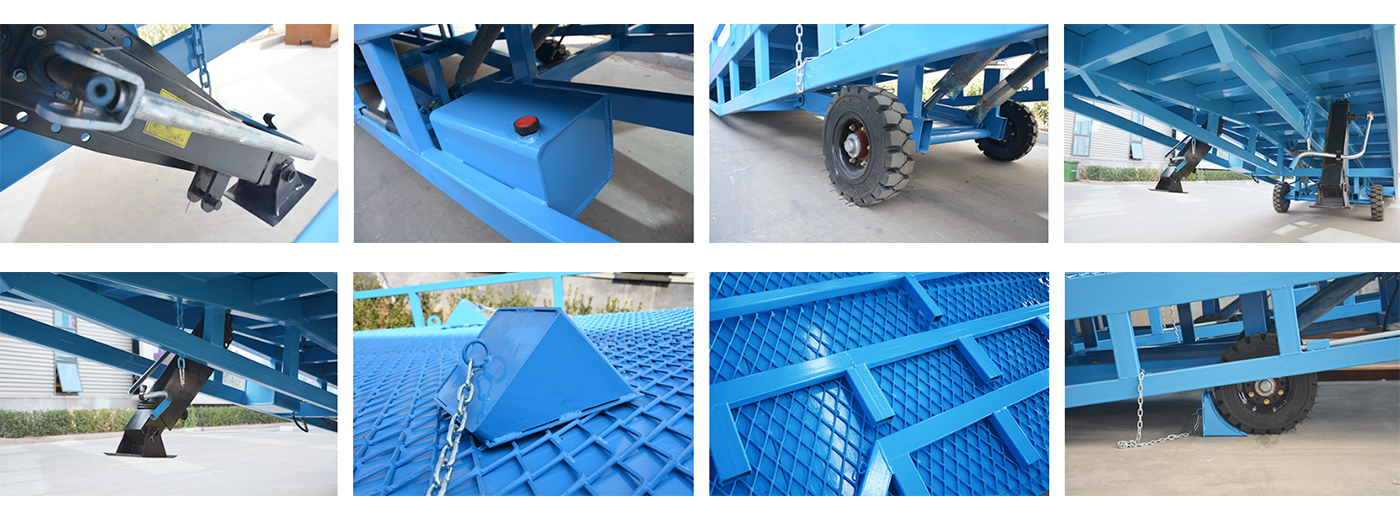

Standard configuration

The Mobile Yard Ramp of the Kccl lift is equipped with the following configurations:

• Strengthen the connecting chain

• Foldable tailgate

• Non-slip mesh diamond mesh

• Solid tire

• Triangle brake pad

• Hydraulic cylinder

• Multifunctional auxiliary legs

• Hand hydraulic pump

Specification:

Model	KNDCQ-6	KNDCQ-8	KNDCQ-10	KNDCQ-12
Performance
Max.Loading capacity	6 Ton	8 Ton	10 Ton	12 Ton
Overall size(Lenght)	11m	11m	11m	11m
Overall size(Width)	2m	2m	2m	2m
Overall size(Height)	1.1m	1.1m	1.1m	1.1m
Slope size(Lenght)	7.15m	7.15m	7.15m	7.15m
Slope size(Width)	2m	2m	2m	2m
Lifting range	1.1-1.7m	1.1-1.7m	1.1-1.7m	1.1-1.7m
Machine weight	2250kg	2350kg	2450kg	3000kg
