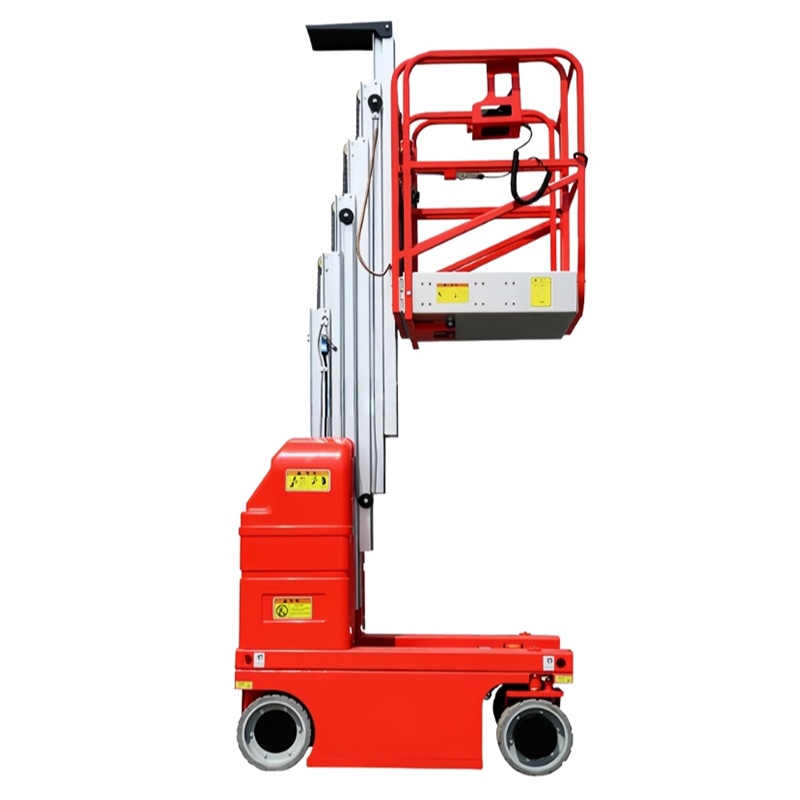

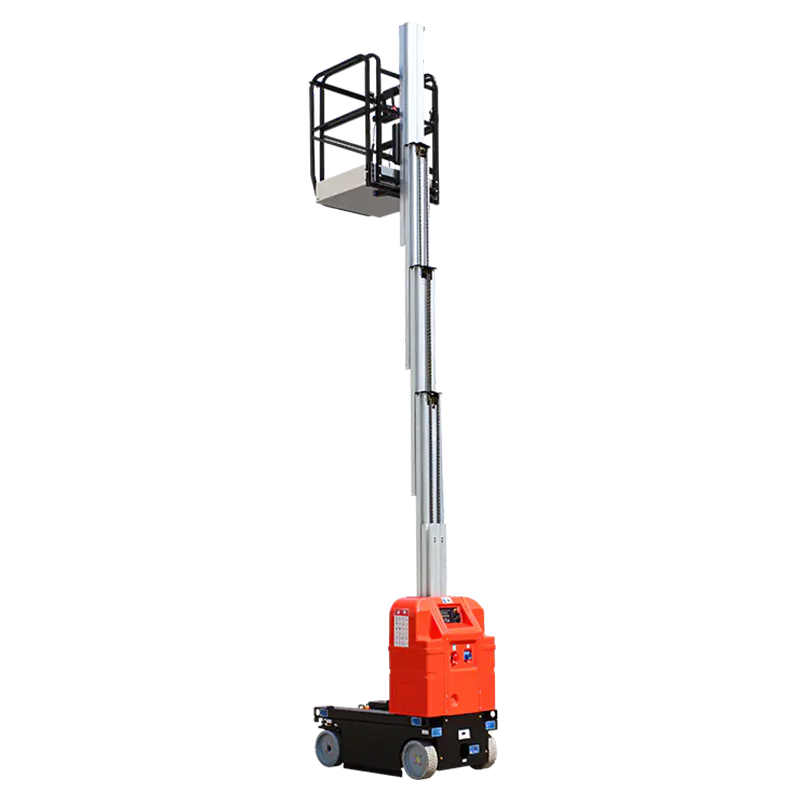

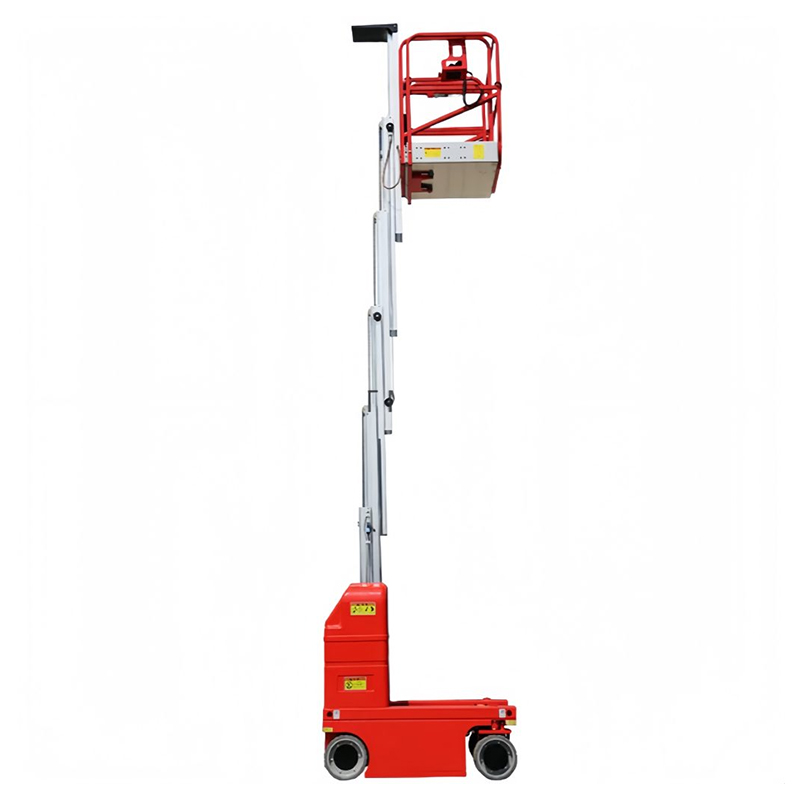

Electric Vertical Mast Lift

Overview:

KCCL Lift's electric vertical mast lift is engineered as the ultimate solution for safe and efficient vertical access in confined spaces. This versatile equipment functions as both a highly maneuverable driveable vertical mast lift and a productivity-focused self propelled vertical mast lift, enabling operators to safely drive and position the platform at full height for single-person tasks. The industry-wide shift towards all-electric systems is a key trend, and our lifts lead the way with zero-emission operation, making them ideal for indoor environments like warehouses, retail stores, and offices where air quality and noise are concerns . As an experienced manufacturer, KCCL Lift integrates robust safety features such as overload protection, emergency descent systems, and anti-slip platforms, with designs that often comply with international certificate standards .

The compact footprint and zero-turn radius of our self propelled vertical mast lift allow it to easily pass through standard doorways and navigate narrow aisles, addressing the core market need for machines that can operate in limited spaces without damaging sensitive finished floors . The initial cost of investment is balanced by low operating expenses, minimal maintenance requirements due to advanced electric drive systems, and high energy efficiency, leading to a superior total cost of ownership . As a trusted supplier, KCCL Lift is committed to providing reliable, cost-effective aerial work platforms that enhance productivity and safety for a wide range of applications, from facility maintenance to industrial installation .

Features:

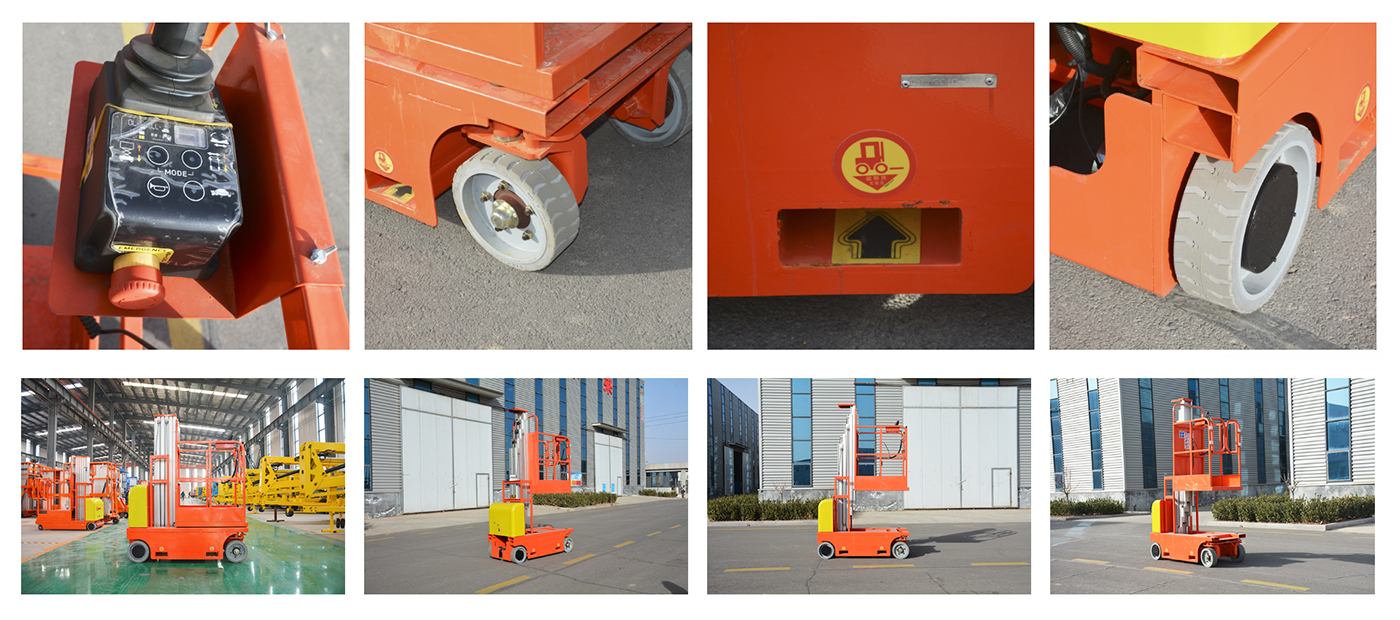

1. The guardrail installation is simple and convenient

Connect the power supply, press the upward button to raise the lifting platform until the lips of the guardrail are higher than the current flip plate. Open the flip plate and make sure all flip plates are opened. Then press the downward button to lower the lifting platform to the bottom. Finally, lock the four corner quick clamps to complete the guardrail installation. The process for lowering the guardrail is the opposite.

2. Strong and wear-resistant polyurethane wheels

The strong and wear-resistant polyurethane wheels are suitable for various floors. They have low walking resistance, low noise, and do not damage the floor.

3. Safe and efficient remote control box

The aluminum alloy elevator is equipped with a remote control box. It can be controlled by the control box below the equipment to control the elevator's movement, or by the remote controller above or beside the equipment to control the elevator's movement. It is safe and efficient, saving you time and effort.

4. Safety emergency lowering button

In emergency situations, rotate the emergency lower button on the bottom counterclockwise to make the platform lower. Under normal circumstances, the emergency lower button should be rotated all the way to the bottom. Otherwise, the platform cannot rise.

5. Compact size and excellent maneuverability

The narrow body design, low contraction height, and lightweight overall structure enable them to freely navigate through narrow areas. Zero turning radius, full height driving capability, and the ability to easily make U-turns enhance their efficiency in extreme spaces.

Application

The electric vertical mast lift can easily enter and operate in narrow passages, stairwells and other confined spaces. Therefore, it is widely used in places such as warehouses, supermarkets, factory workshops, stadiums, hotels, airports, etc., for daily tasks such as lighting maintenance, water, electricity and ventilation installation, cleaning, inventory management, etc.

Specification:

Self-propelled Vertical Lift
Model	AMWP6-1100	AMWP7.5-1100
Max.Working Height	8m	9.5m
Max.Platform Height	6m	7.5m
Loading Capacity	150kg	125kg
Occupants	1	1
Overall Length	1.4m	1.4m
Overall Width	0.76m	0.76m
Overall Height	1.99m	1.99m
Platform Dimension	0.66mx0.67m	0.66mx0.67m
Wheel Base	1.07m	1.07m
Turning Radius	0.3m	0.3m
Travel Speed(Stowed)	3.5km/h	3.5km/h
Travel Speed(Raised)	0.8km/h	0.8km/h
Up/Down Speed	48/40sec	53/45sec
Gradeability	25%	25%
Drive Tyres	ф305x100mm	ф305x100mm
Drive Motors	2x24VDC/0.5kW	2x24VDC/0.5kW
Lifting Motor	24VDC/1.2kW	24VDC/1.2kW
Battery	2x12V/100Ah	2x12V/100Ah
Charger	24V/15A	24V/15A
Weight	1120kg	1190kg
